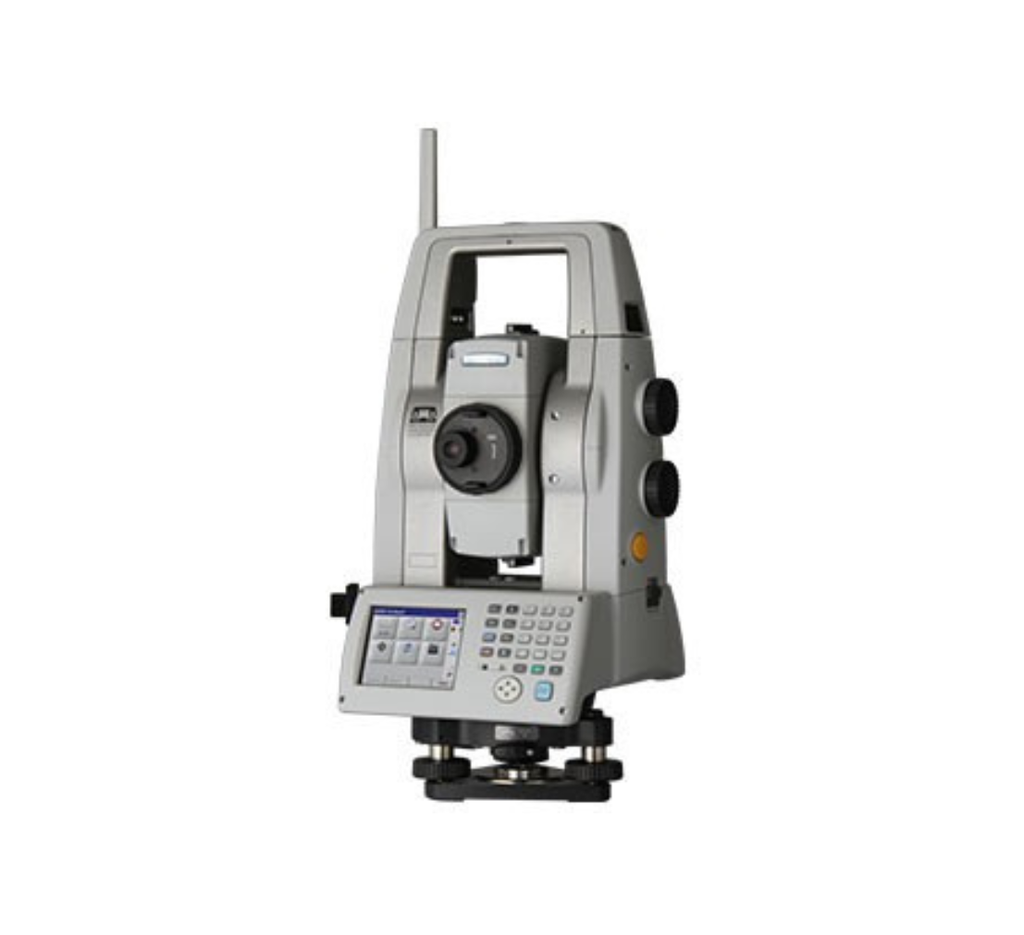

Featuring a wide array of innovative technologies, the NET AXII 0.5″ and NET AXII 1″ total stations offer superior performance in angle and distance measurement as well as reliable robotic functionality. The NET ensures dramatic enhancement in precision and productivity in all applications such as surveying, engineering, construction, monitoring and 3D industrial measurement.
Ultra-high Precision with Full Robotic Functionality:
• 0.5” / 1” Angular Accuracy
• Exclusive Reflector Prescan technology*
• 0.5 mm Ultra High-precision Distance Measurement
• Auto-Pointing Accuracy of 1″
• Laser Option for Tunneling
• IP65 Enhanced Durability for Long-term Installations
* Reflector Prescan and Rapid 2D Monitoring are available when operating the NET via command operation from an external PC or other devices.
| NET05AXII |
|
| Angle Measurement |
0.5″ |
| Rotation Speed |
Absolute encoder scanning. Both circles adopt diametrical detection. |
| Distance Measurement (Single Prism) |
3,500m (11,480ft.) |
| Distance Measurement (Reflectorless) |
100m (328ft.) |
| Accuracy (Single Prism) |
0.8mm + 1ppm |
| Accuracy (Reflectorless) |
1mm + 1ppm
Up to 200m (656ft.) range. |
| Display |
3.5in. TFT QVGA backlit color LCD Touch Screen |
| Auto-Point Range (Single Prism) |
1.3 to 1,000m (4.3 to 3,280ft.) |
| Auto-Point Accuracy (Single Prism) |
1” (0.3mgon) (1mm@200m)
Auto-Pointing accuracy is verified using the methods specified by ISO 17123-3. |
| NET1AXII |
|
| Angle Measurement |
1″ |
| Rotation Speed |
Absolute encoder scanning. Both circles adopt diametrical detection. |
| Distance Measurement (Single Prism) |
3,500m (11,480ft.) |
| Distance Measurement (Reflectorless) |
400m (1,310ft.) |
| Accuracy (Single Prism) |
1mm + 1ppm |
| Accuracy (Reflectorless) |
2mm + 1ppm*
Up to 200m (656ft.) range. |
| Display |
3.5in. TFT QVGA backlit color LCD Touch Screen |
| Auto-Point Range (Single Prism) |
1.3 to 1,000m (4.3 to 3,280ft.) |
| Auto-Point Accuracy (Single Prism) |
1” (0.3mgon) (1mm@200m)
Auto-Pointing accuracy is verified using the methods specified by ISO 17123-3. |
Includes:
| NET AX2 Instrument |
| Battery- BDC72 |
| Charger – CDC77 |
| Stylus Pen |
| Lens Cap |
| Lens Hood |
| Tool Pouch |
| Screwdriver |
| Lens Brush |
| Adjusting pin straight type |
| Adjusting pin round type |
| Vinyl cover |
| Wiping cloth (qty 2) |
| Quick Manual |
| USB memory & Manual data |
| USB memory key sticker |
| Laser use card |
| Registration Card (2yr) |
| Standard package list |
| Address list |
| Carrying case (med size) |
| Case sticker |
| Carrying strap (qty 2) |
