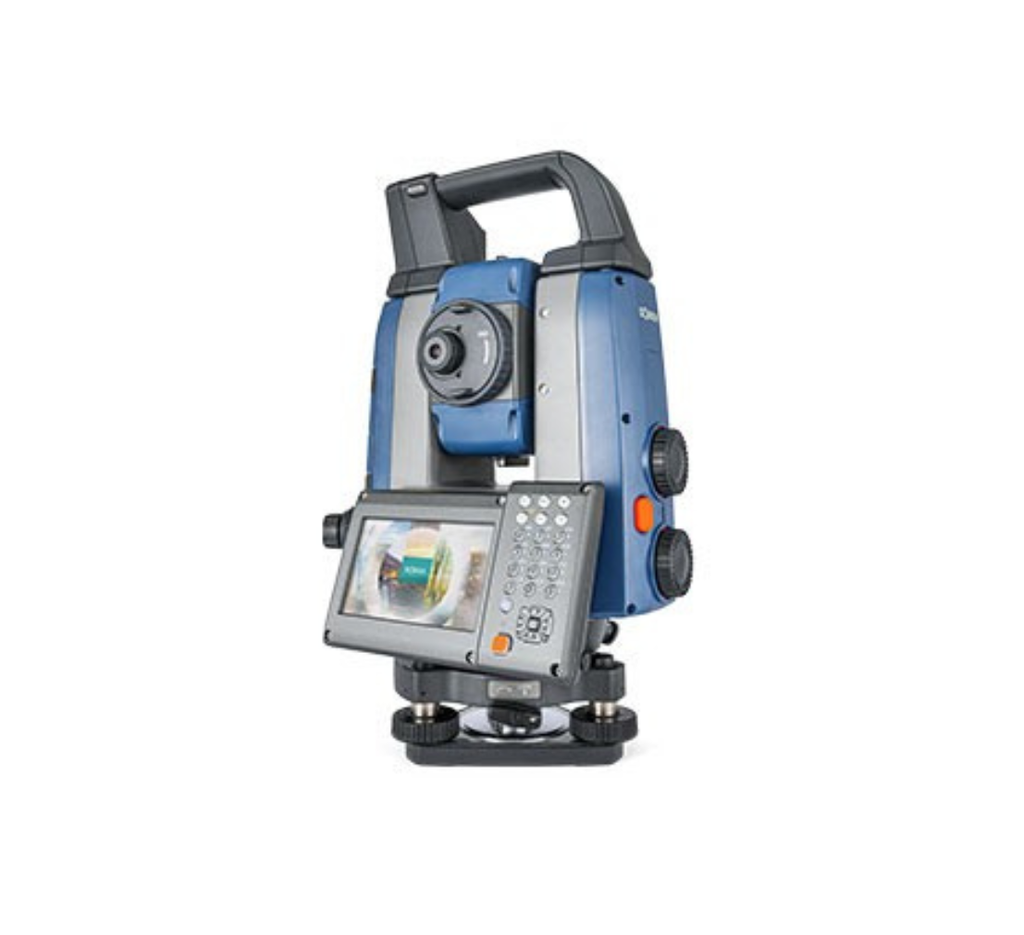

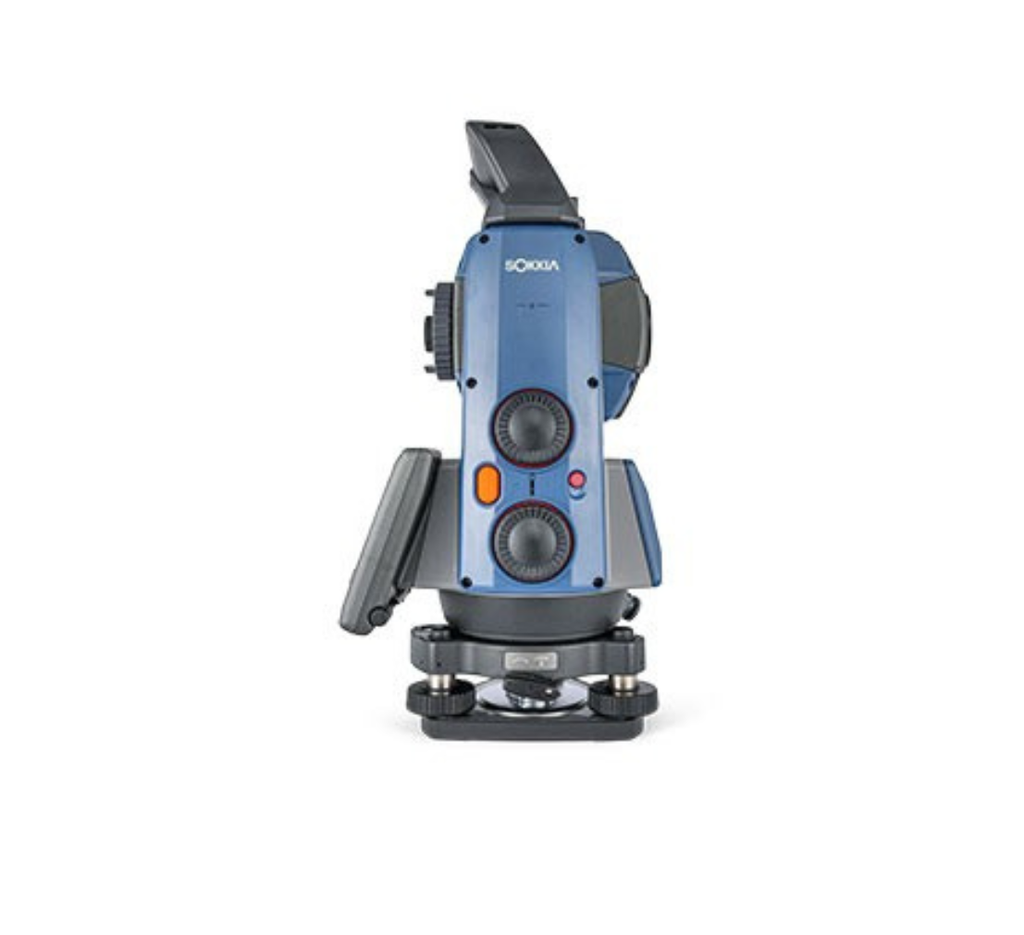

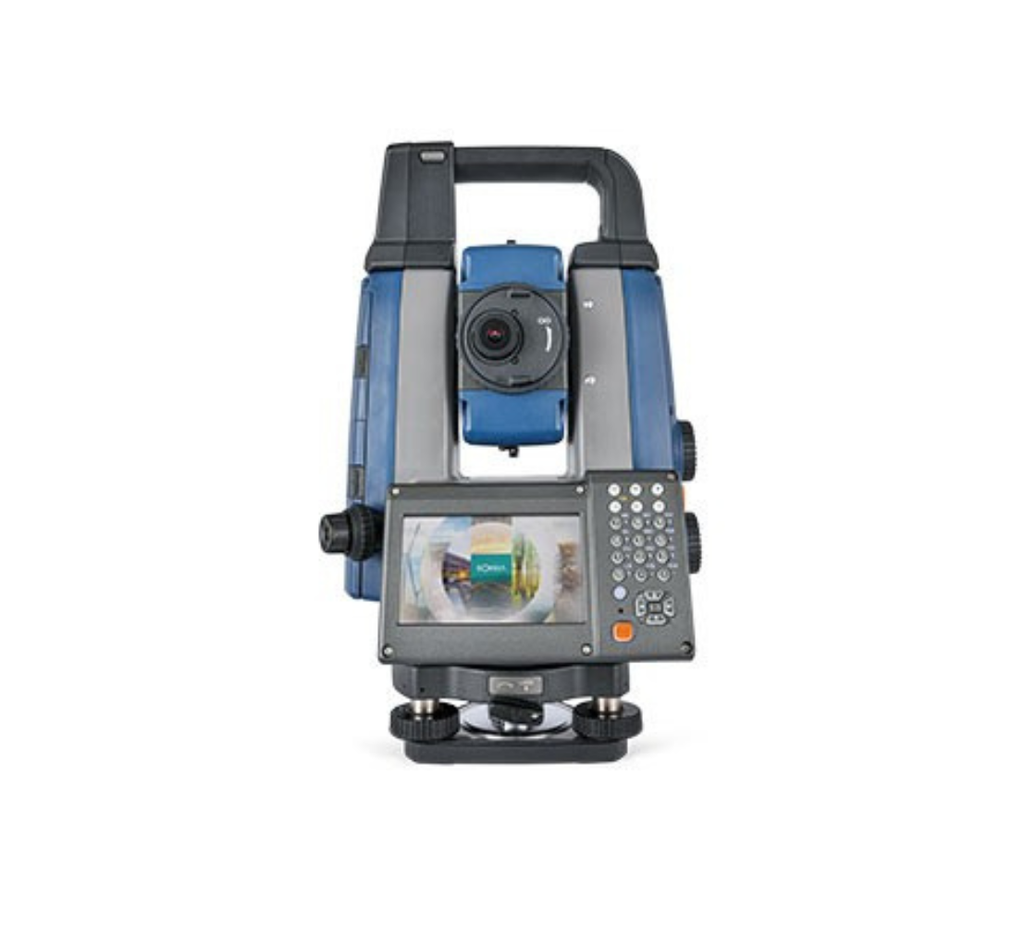

Sokkia iX-1200 Series Robotic Total Station

Built for job site mobility, the iX1200 Series ultrasonic robotic total station enables accurate and productive workflows for highly demanding survey and construction applications. Precisely lay out or survey more points in less time and improve quality and consistency. Easy-to-use digital processes with repeatably accurate results mean less rework and better quality control. iX is one professional tool that does it all for survey and layout.

• Precise positioning with single-person operation

• High-speed advanced ultrasonic motors

• Easy-to-use with Sokkia Field software

• Seamless integration into BIM workflows

• Available with multiple accuracy levels

• Three-year instrument and five-year motor warranty

• Ultra-rugged IP65 dust and water resistance

Model	iX-1200
Motor	Ultrasonic (USM)
Tracking range	360° Prism ATP1/ATP1S: 600m (1968ft)
RC range	Up to 600m (1968ft)
Dual-axis compensator (Tilt)	±6′
Data Management
Field Software	Sokkia Field/3rd parties
Data Storage	Internal: 1GB USB: Up to 32GB
Interface	RS-232C, USB 2.0 (Type A and mini B)
Long-range Bluetooth	Yes. Up to 600m
Wi-Fi	IEEE 802.11 b/g/n
Hardware
Guide Light	Green LED (524nm) and Red LED (626nm) Operating range: 1.3 to 150m (4.3 to 490ft)
Ingress protection	IP65 (IEC 60529:2001)
Operating temperature	-20 to +50°C (-4 to +122°F)
Dimensions	212(W) x 172(D) x 355(H)mm 8.32″ x 6.77″ x 13.97″
Weight with battery & tribrach	Approx. 5.8kg (12.8lb) (with RC handle)
Laser plummet	Optional
Power
Power source	BDC72 Li-ion (5986 mAh)
Operating time (20°C)	~ 4 hours
Model	iX-1200
Accuracy	1″, 3″, 5″ (0.3, 1.0, 1.5) mgon
AP01 EDM Range	6000m (19685ft)
Prism EDM Accuracy	1mm (0.003 ft) + 2ppm
Non-Prism Range	Up to 800m (2624ft)
Non-Prism Accuracy	2mm (0.0065 ft) + 2ppm
Tracking Range AP01	Up to 1000m (3280ft)
Turning Speed	150°/sec
Tracking Speed	20°/sec

Includes:

1	Main unit- iX Robotic Total Station
2	Battery- BDC72
1	Charger – CDC77
1	Stylus pen
1	Lens cap
1	Lens hood
1	Tool pouch
1	Screw driver
1	Lens brush
2	Adujusting pin
1	Hexagon wrench
1	Silicon cloth
1	Startup guide
1	USB flash drive
1	Serial card
1	Laser caution sign-board
1	Carrying case
1	Carrying strap
1	Export restrictions card
1	Registration manualT
1	Registration card
1	Certification card
1	Encription card
2	Carrying strap
