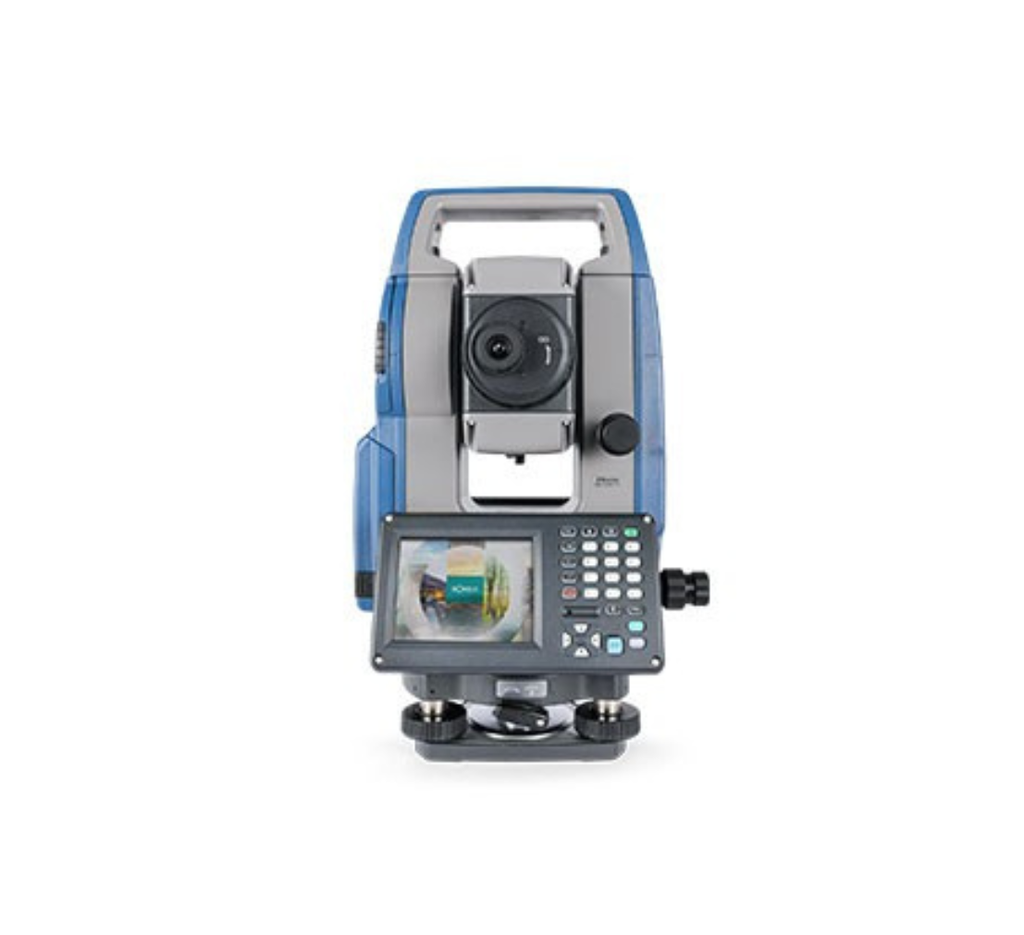

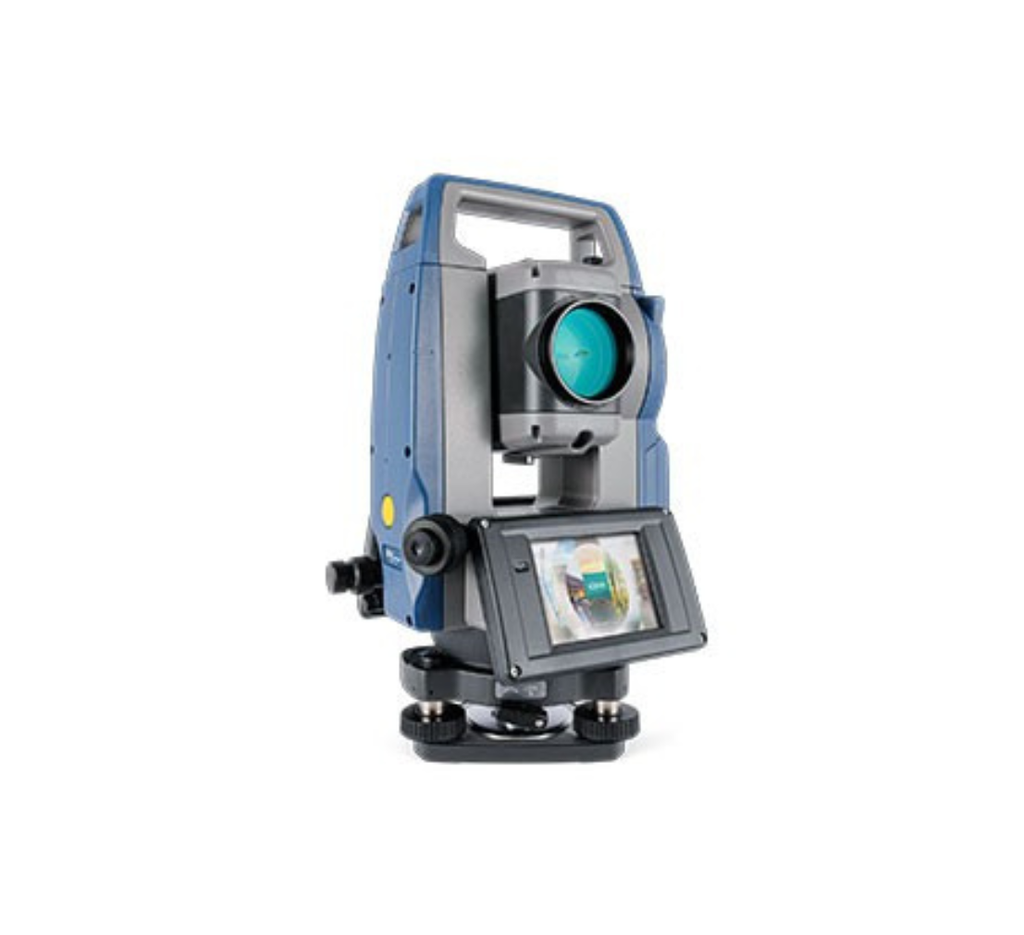

Sokkia FX 200 Series Manual Total Station

The FX 200 total station provides the advantage of on-board Windows® Embedded Compact 7 operating system and comes standard with MAGNET™ Sokkia Field, the cloud-based application software for unmatched measurement ease and data security.

Features:

• Windows® Compact 7 operating system in compact, rugged body

• Sokkia Field on-board application software

• Advanced Angle Measurement System

• RED-Tech advanced reflectorless measurement

• Long-Range Bluetooth® wireless communication

• Available in 1, 3, and 5 second models

Angle Measurement	1″, 3″, 5″
Distance Measurement (Single Prism)	1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.) Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.
Distance Measurement (Reflectorless)	0.3 to 500m (1.0 to 1,640ft.)* Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.
Accuracy (Single Prism)	(2 + 2ppm x D) mm
Accuracy (Reflectorless)	(3 + 2ppm x D) mm* Measuring range:0.3 to 200m
Measuring Time	Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)
Tilt Compensation	Dual Axis, Compensation Range +/- 6′
Wireless Communication	Bluetooth Class 1 – 300m (980ft) No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain.
Operating System/Processor	Microsoft Windows® Compact 7
Display	3.5in. / Transmissive TFT QVGA color LCD
Dust/Water Protection	IP65
Operating Temperature	-20 to +50ºC (-4 to +122ºF)
Size (single face model)	W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.)
Weight (battery & tribrach)	Approx. 5.7kg (12.6 lb.)
Operating Time	Approx. 20 hours (single distance measurement every 30 seconds)
