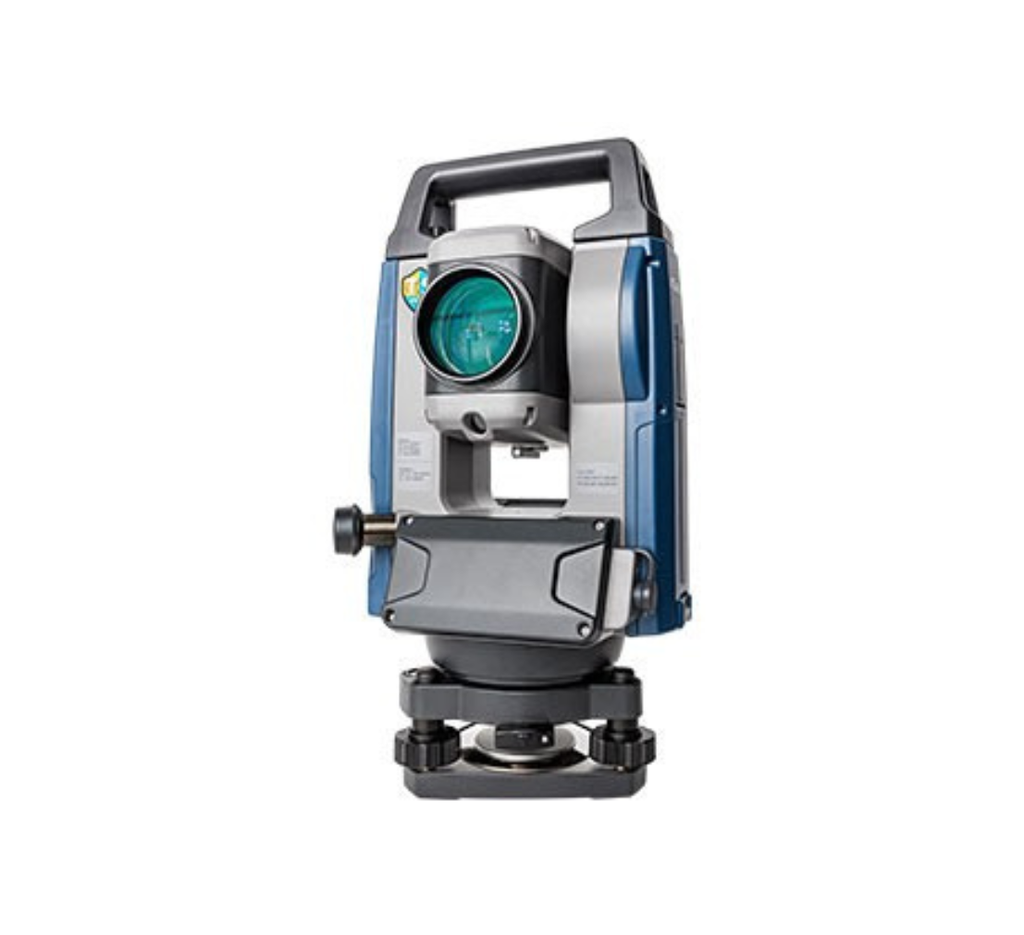

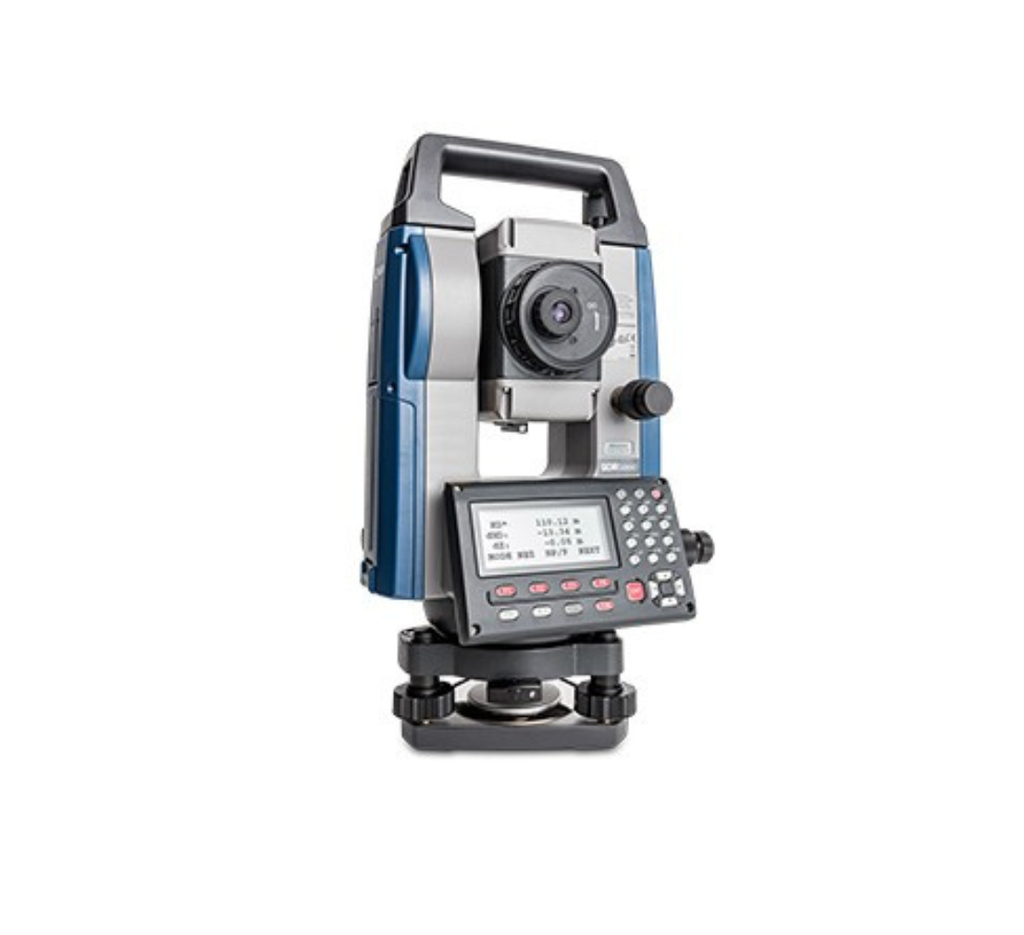

| MODEL |
iM-101 |
iM-102 |
iM-103 |
iM-105 |
| Telescope |
| Magnification / Resolving power |
30x / 2.5″ |
| Length |
171 mm (6.7 in.) |
| Objective aperture |
45 mm (1.8 in.) (48 mm (1.9 in.) for EDM) |
| Image |
Erect |
| Field of view |
1°30′ (26 m/1,000 m) |
| Minimum focus |
1.3 m (4.3 ft.) |
| Reticle illumination |
5 brightness levels |
| Angle Measurement |
| Display Resolution |
0.5″ / 1″ |
1″ / 5″ |
| Accuracy (ISO 17123-3:2001) |
1″ |
2″ |
3″ |
5″ |
| IACS (Independent Angle Calibration System) |
Provided |
| Dual-axis compensator / Collimation compensation |
Dual-axis liquid tilt sensor, working range: ±6′ (±111 mgon) / Collimation compensation available |
| Distance Measurement |
| Laser output*1 |
Reflectorless mode: Class 3R / Prism / sheet mode: Class 1 |
Measuring range
(under average conditions*2) |
Reflectorless*3 Reflective sheet*4/*5
Mini prisms One AP prism
|
0.3 to 800m (1.0 to 2,624 ft.)
RS90N-K: 1.3 to 500 m (4.3 to 1,640 ft.)
RS50N-K: 1.3 to 300 m (4.3 to 980 ft.)
RS10N-K: 1.3 to 100 m (4.3 to 320 ft.)
CP01: 1.3 to 2,500 m (8,200 ft.), OR1PA: 1.3 to 500 m (1,640 ft.)
1.3 to 5,000 m (4.3 to 16,400 ft.) / Under good
conditions*6: 6,000 m (19,685 ft.) |
| Display Resolution |
Fine/Rapid: 0.001 m / 0.01 ft. / 1/8 in. Tracking: 0.01 m / 0.1 ft. / 1/2 in. |
Accuracy*2 (ISO 17123-4:2001)
(D=measuring distance in mm) |
Reflectorless*3 Reflective sheet*4
AP/CP prism |
(2 + 2 ppm x D) mm*7 (2 + 2 ppm x D) mm
(1.5 + 2 ppm x D) 1.5 mm |
| Measuring time*8 |
Fine: 0.9 s (Initial 1.5 s), Rapid: 0.6 s (Initial 1.3 s),
Tracking: 0.4 s (Initial 1.3 s) |
| Interface and Data management |
| Display / Keyboard |
Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard /
28 keys with backlight |
| Control panel location*9 |
On both faces (second display is optional) |
| Trigger key |
On right instrument support |
| Data storage |
Internal memory
Plug-in memory device |
Approx. 50,000 points
USB flash memory (max. 32GB) |
| Interface |
Serial RS-232C, USB2.0 (Type A, for USB flash memory) |
| Bluetooth® modem (optional)*10 |
Bluetooth® Class 1.5, Ver.2.1 + BR, EDR, LE, BT4.1 Operating range: up to 10 m (33 ft.)*11 |
| General |
| Laser-pointer*12 |
Coaxial red laser using EDM beam |
| Guide light*12 |
Green LED (524 nm) and Red LED (626 nm), Operating range: 1.3 to 150 m (4.3 to 490 ft.)*2 |
| Levels |
Graphic
Circular level (on tribrach) |
6’ (Inner Circle)
10’ / 2 mm |
| Plate Level |
Regional Dependent |
| Optical plummet (optional for NA, LA and EU) |
Magnification: 3x,
Minimum focus: 0.3 m (11.8 in.) from tribrach bottom |
| Laser plummet (optional for Oceana and Russia) |
Red laser diode (635 nm ± 10 nm),
Beam accuracy: ≤1.0 mm at 1.3 m, Class 2 laser product |
| Dust/Water Rating |
IP66 (IEC 60529:2001) |
| Operating Temperature*13 |
-20 to 60ºC |
| Size with handle*9 (w x d x h) |
Control panel on both faces: 183 x 181 x 348 mm Control panel single face: 183 x 174 x 348 mm |
| Weight with battery and tribrach |
Approx. 5.3 kg |
*1 IEC60825-1:Ed.2.0:2007 / FDA CDRH 21 CFR Part 1040.10 and 11 *2 Average conditions: Slight haze, visibility about 20 km (12 miles), sunny periods, weak scintillation. *3 With Kodak Gray Card White Side (90% reflective). When brightness on measured surface is 30,000 lx. or less. Reflectorless range/accuracy may vary according to measuring objects, observation situations and environmental conditions. *4 When the measuring beam’s incidence angle is within 30º in relation to the reflective sheet target.
