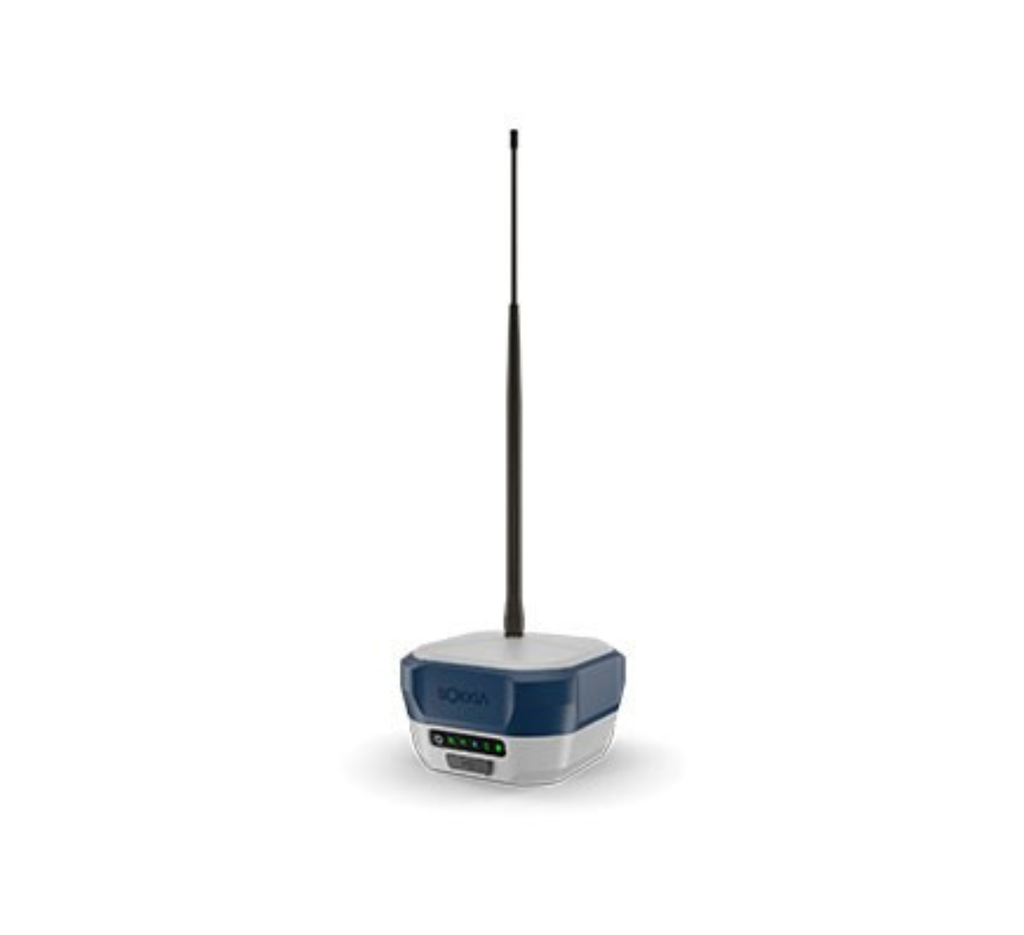

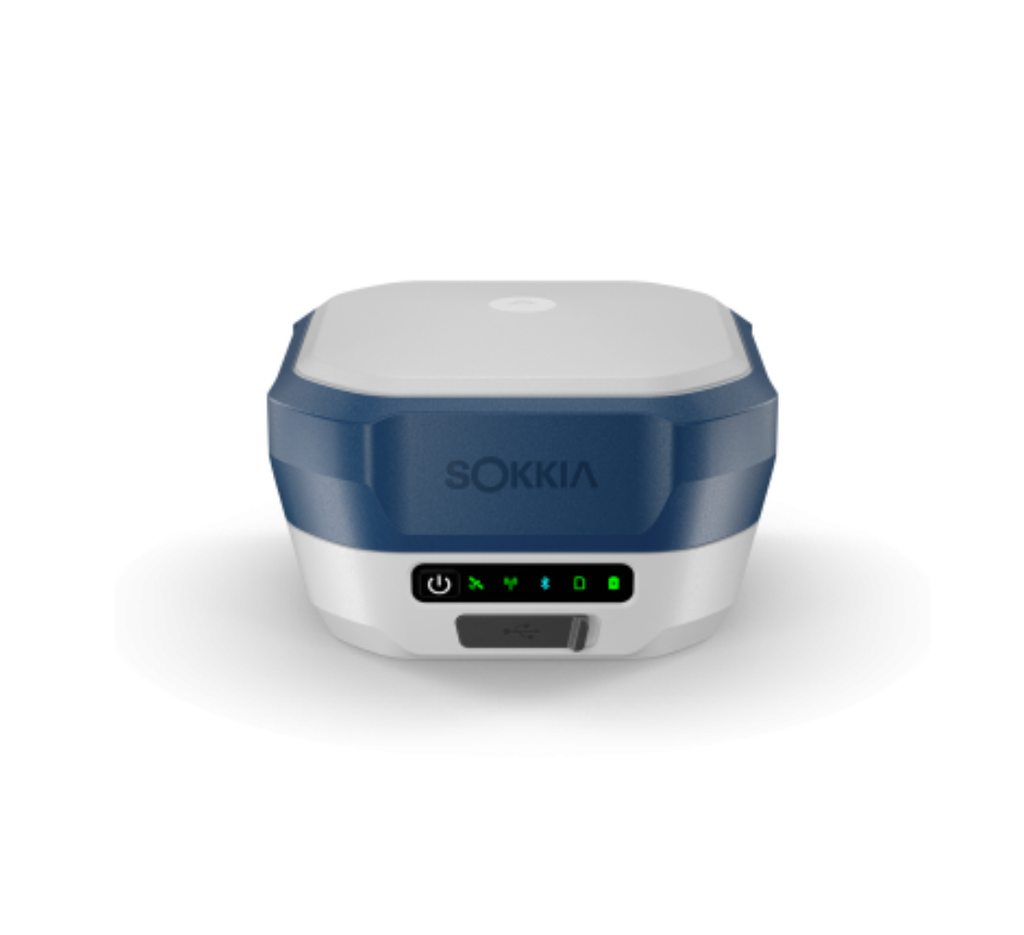

Sokkia GRX5 GNSS Receiver
The Sokkia GRX5 is smaller, lighter, and packed with the most advanced GNSS technology in a design built to withstand the harshest field environments. All signals, all satellites and all constellations — in a compact, rugged design, with an integrated IMU and 4G cell modem.
Sokkia Tilt Technology
The GRX5 incorporates a revolutionary IMU which is calibration-free and immune to magnetic interference. This advanced technology compensates for mis-leveled field measurements out of plumb by as much as 60 degrees.
• Anti-jamming and anti-spoofing capabilities
• 448 channels covering all modernized signals (GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS, SBAS, L-band)
• Available with integrated UHF radio
• Universal USB-C connectivity and battery charging
• Static, PPP and RTK
• Fusion technology automated workflow
| Number of Channels |
448 |
| Tracked Signals |
GPS: L1 C/A, L1P, L2P, L2C, L5
GLONASS: L1 C/A, L2P, L2C/A, L3
BeiDou: B1, B1C, B2, B2a, B2b, B3
Galileo: E1, E5a, E5b, E5 AltBOC, E6
SBAS: L1, L5
IRNSS: L5
QZSS: L1C/A, L1 C/B, L2C, L5
L-band |
| Static/Fast Static1 |
H: 3 mm + 0.4 ppm
V: 5 mm + 0.5 ppm |
| PPP |
H: 3 cm RMS2
V: 5 cm RMS2
Convergence time: < 5 mins3 |
| RTK4 |
H: 5 mm + 0.5 ppm
V: 10 mm + 0.8 ppm |
| Memory |
Internal, non-removable 20 GB |
| Radio |
403-473 MHz UHF radio |
| Dust/Water Protection |
IP67 |
| Dimensions |
139 x 139 x 197 mm (w x h x d) |
| Operating Time5 |
RX mode : 10.5 – 13 hr, TX mode 1W : 7 hr |
|
Includes: |
QTY |
| 1049333-01 |
ASSY GRX5 – UHF (4G CELL) |
2 |
| 1075615-01 |
OAF, GRX5, DEFAULT |
2 |
| 1077202-01 |
SUBs, Data Plan, 1 GB/MO, 12 MO |
2 |
| 1029861-02 |
HARD CASE, SOKKIA GRX5 |
1 |
| 1068616-01 |
PWR ADPT USB-C PLG/C6 IN 5V-20V 65W |
2 |
| 1068615-01 |
CABLE USB-C 2.0 PLUG(2X) UNSH BLK(1.0M) |
2 |
| 1068617-01 |
ADPT USB-C FEMALE/USB-A MALE USB 3.0 |
2 |
| 1005793-01 |
CABLE, POWER 3 PIN US |
2 |
| 1029864-01 |
BOX, SHIPPING GRX5 |
1 |
| 1071974-01 |
MNL, GRX5 QRC |
1 |
| 1022905-01 |
CARD, MYTOPCON REG EN |
1 |
| 1016414-01 |
CARD, UHF RADIO FREQ CONFIG |
1 |
| 1065028-03 |
ANTENNA,WHIP,430-480MHZ,RP-SMA |
2 |
| 51949 |
Prism Spacer, 100 mm |
1 |
| 1013050-01 |
BKT, GPS ANTENNA HEIGHT MEASURE |
1 |
| 808016 |
POLE, CARBON, FIXED 2M, 2 SECT, SOKKIA |
1 |
