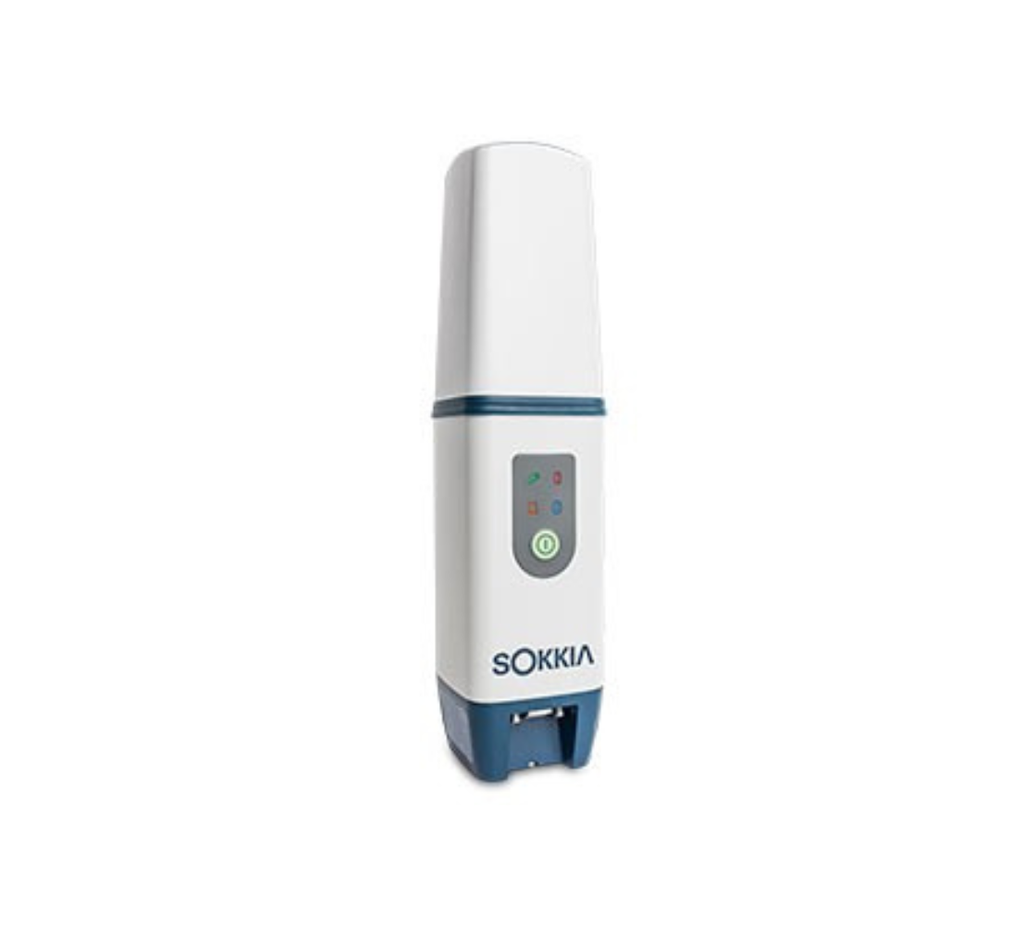

Sokkia GCX3 GNSS Receiver
The Sokkia GCX3 GNSS receiver is an innovative tool that revolutionizes technology in surveying, mapping, and construction. This small yet efficient device harnesses the power of modern-day global navigation satellite systems such as GPS, GLONASS, BeiDou, and Galileo. The GCX3 offers ultramodern, robust tracking, and consistently delivers remarkable results, irrespective of the location of your project.

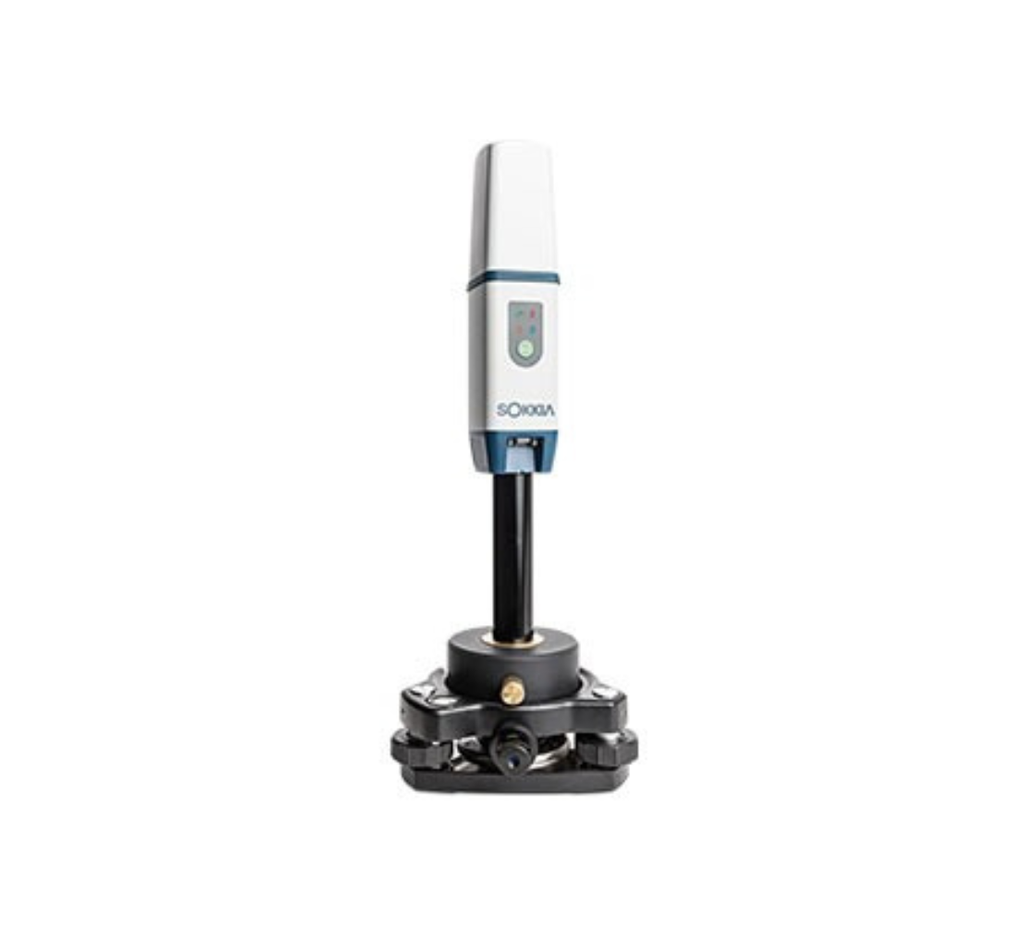

The GCX3 is the ideal local jobsite base/rover RTK (Real Time Kinematic) system or Network RTK rover. You can customize it to meet your needs and create your own workflows.
Features:
• All-in-view constellation GNSS receiver
• 226 optimized satellite tracking channels
• Second generation POST2™ (Precision Orbital Satellite Technology) integrated antenna – robust signal tracking even around interference sources
• Compact, lightweight, rugged and cable-free design
• Ideal network RTK rover
• Wireless, multi-channel Sitecomm™ technology
| Number of Channels |
226 channels |
| Tracked Signals |
GPS L1 C/A, L1C, L2P, L2C
GLONASS L1 C/A, L1P, L2 C/A, L2P
BeiDou B1, B2
Galileo E1
SBAS L1 C/A WAAS/MSAS/EGNOS/GAGAN
QZSS L1 C/A, L1C, L2C |
| Static/Fast Static |
H: 10mm + 0.8 ppm, V: 15 mm + 1.0 ppm |
| Memory |
Internal non-removable memory up to 8 GB |
| Bluetooth® Modem |
v2.1 + EDR |
| Dust/Water Protection |
IP67 |
| Dimensions (w x h x l) |
47 x 197 x 47 mm (1.9” x 7.3” x 1.9”) |
| Battery Type |
Internal non-removable |
| Operating Time |
All day operation in any configuration (up to 10 hours) |
| External Power Connector |
Service port (shared with USB 2.0 communication) |
| Includes (1 of each): |
| 01-120650-11 ASSY,GCX3 RECEIVER |
| 1005518-01 ADAPTER,AC DC DESKTOP,GCX2 US |
| 1005519-01 ADAPTER,INTERNATIONAL (BAG OF 3)GCX2 |
| 1013602-01 CABLE,LOW DROP,USB A/USB uB(1.5m) |
| 1017114-00 OAF,GCX3 STANDARD |
| 1017283-01 BOX, GCX3 COMPLETE W/FOAM |
| 1017284-01 LABEL, GCX3 BOX |
| 7010-0386 CARD, 1,2,3,5 YR WARRANTY |
