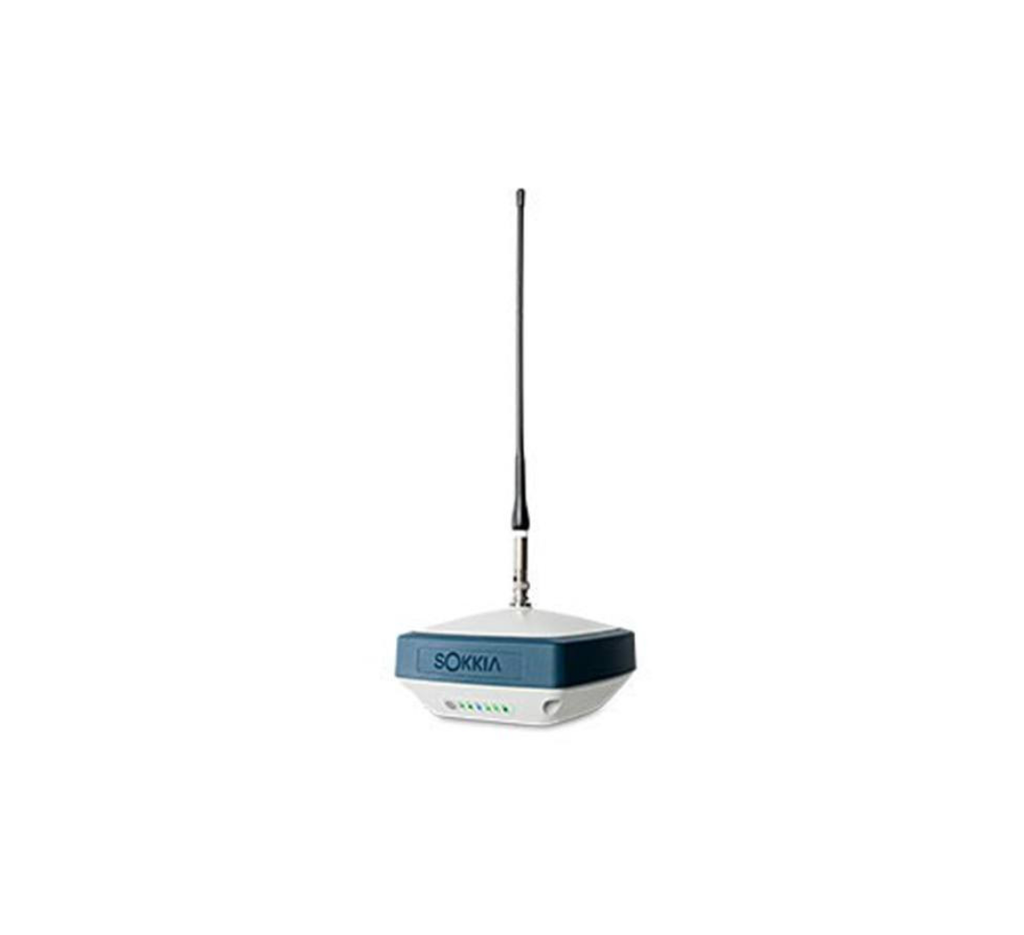

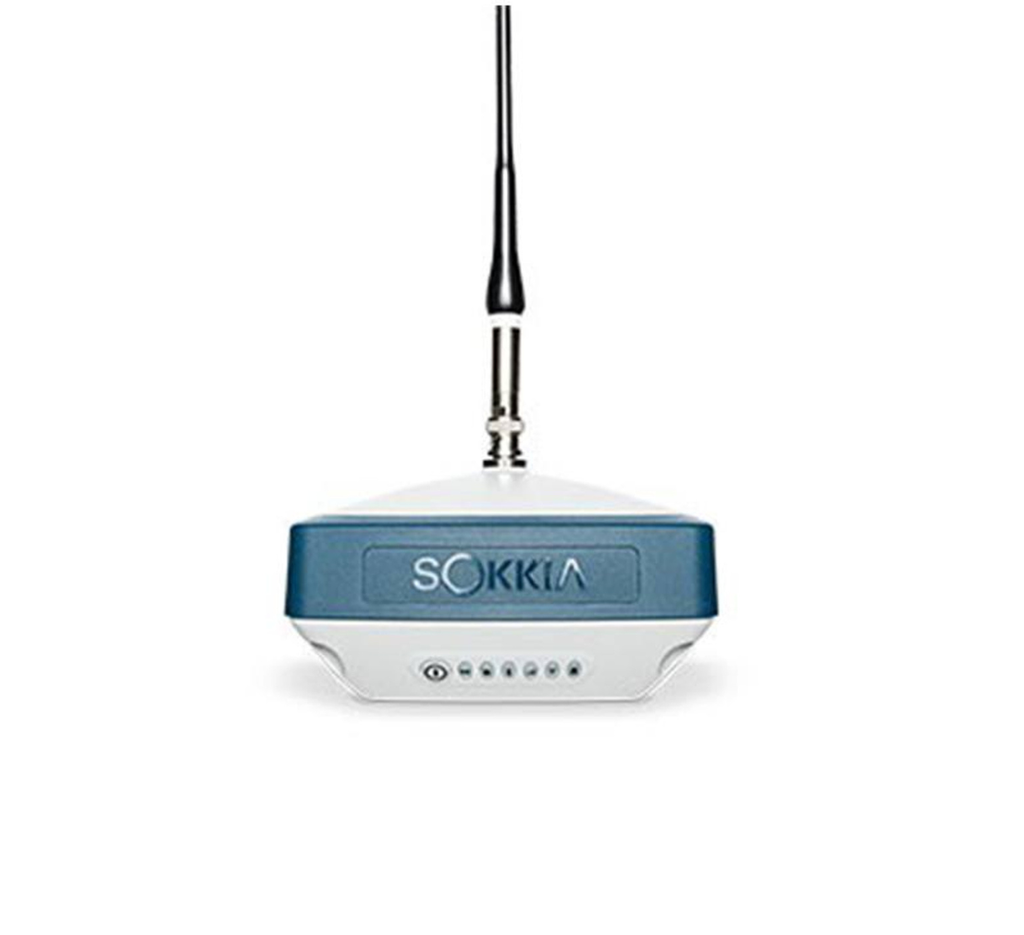

Sokkia GRX3 GNSS Receiver
This fully integrated all-in-view constellation RTK GNSS receiver brings a new level of versatility and flexibility into your precision positioning applications. The GRX3 provides unmatched usability and versatility that’s sure to enhance your productivity.
Features:
• Sokkia Tilt Technology
• L Band Ready Technology
• 226 Universal Tracking Channels™ covering all modernized signals (GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS, SBAS)
• Integrated 400MHz UHF and SiteComm™ Radios
• RTK and static survey operations
• Fusion Positioning™ technology automated workflow
• Standard RTK and Network RTK
• IP67 rated
| GNSS Tracking |
| Channel Count |
226 with patented Universal Tracking Channels technology. |
| Signal |
| GPS Signals |
L1 C/A, L1C† L2C, L2P(Y), L5
†L1C when signal available. |
| GLONASS |
L1 C/A, L1P, L2C/A, L2P, L3C±
±L3C when signal available. |
| Galileo |
E1/E5a/E5b/Alt-BOC |
| BeiDou/BDS |
B1, B2 |
| IRNSS |
L5 |
| SBAS |
WAAS, EGNOS, MSAS, GAGAN (L1/L5§)
§L5 when signal available. |
| L-band |
TopNET Global D & C Corrections services |
| QZSS |
L1 C/A, L1C, L1-SAIF, L2C, L5 |
| User Interface |
| Operation |
Single-button operation for power, receiver reset, memory initialization |
| Display panel |
22 LED status indicators |
| Positioning Performance |
| Static/ Fast Static |
H: 3 mm + 0.4 ppm
V: 5 mm + 0.5 ppm* |
| Precision Static |
H: 3.0 mm + 0.1 ppm
V: 3.5 mm + 0.4 ppm |
| RTK |
H: 5 mm + 0.5 ppm
V: 10 mm + 0.8 ppm |
| RTK, Tilt Compensated |
H: 1.3 mm/°Tilt; Tilt ≤ 10°
V: 1.8 mm/°Tilt; Tilt > 10° Maximum recommended angle for tilt compensation is 15°.** |
| DGPS |
0.25 m HRMS |
| L-Band, D Corrections Service |
H: < 0.1 m (95%)
V: < 0.2 m (95%) |
|
Operational Time
|
RX mode – 10hr TX mode 1W – 6hr |
| Use of external 12V battery is recommended when using GRX3 with internal radio in transmit mode. |
| Internal Radios |
425-470 MHz UHF radio Max Transmit Power: 1W Range: 5-7 km typical; 15 km in optimal conditions.*** |
| Memory |
Internal Non-removable 8 GB SDHC |
| Environmental |
| Dust/Water Rating |
IP67 |
| Operating Temperature |
-40ºC to 65ºC |
| Humidity |
100%, condensing |
| Drop and Topple |
1.0 m drop to concrete.
2.0 m pole drop to concrete. |
| Physical |
| Dimensions |
150 x 100 x 150 mm (w x h x d) |
| Weight |
<1.15 kg |
Includes:
Base & Rover UHF 440-470
| 2 |
POWER SUPPLY 12V 5A W/ SAE CONN |
| 2 |
CABLE, POWER 3 PIN US |
| 1 |
BKT, GPS ANTENNA HEIGHT MEASURE |
| 2 |
CABLE,LOW DROP,USB A/USB uB(1.5m) |
| 1 |
BOX, SHIPPING GRX3 |
| 2 |
ASSY,GRX3 W/R2LITE UHF,NO CELL |
| 1 |
CASE, HARD, SOKKIA GRX3 |
| 2 |
NOTICE, SOKKIA R2LITE RADIO FREQUENCY |
| 2 |
CARD, GRX3 QUICK REFERENCE |
| 2 |
OAF, Default, GRX3 |
| 2 |
CABLE REC TO SERIAL DB9 |
| 2 |
CABLE,POWER 5PIN ODU TO SAE + FERRITE |
| 1 |
ALLIGATOR CLIPS TO SAE CABLE |
| 1 |
CABLE, NET G3 POWER SAE TO OPEN ENDS |
| 1 |
TRIBRACH WITH OPTICAL PLUMMET BLACK |
| 1 |
PHV1034DMN 3/4x12ft/3.7m PWR TAPE 10ths |
| 2 |
ANT,RUBBER DUCK 440-470MHZ HIPER PRO |
| 1 |
TRIBRACH ADAPTER #5 W REMOVABLE CENTER |
| 1 |
Prism Spacer, 100 mm |
| 2 |
CARD, 1,2,3,5 YR WARRANTY |
| 1 |
TRIPOD, SK-15 WOOD FIBERGLASS QC |
| 1 |
POLE, CARBON, FIXED 2M, 2 SECT, SOKKIA |
Rover UHF 440-470
| 1 |
POWER SUPPLY 12V 5A W/ SAE CONN |
| 1 |
CABLE, POWER 3 PIN US |
| 1 |
CABLE,LOW DROP,USB A/USB uB(1.5m) |
| 1 |
BOX, SHIPPING GRX3 |
| 1 |
ASSY,GRX3 W/R2LITE UHF,NO CELL |
| 1 |
CASE, HARD, SOKKIA GRX3 |
| 1 |
NOTICE, SOKKIA R2LITE RADIO FREQUENCY |
| 1 |
CARD, GRX3 QUICK REFERENCE |
| 1 |
OAF, Default, GRX3 |
| 1 |
CABLE REC TO SERIAL DB9 |
| 1 |
CABLE,POWER 5PIN ODU TO SAE + FERRITE |
| 1 |
POLE, 2M FIXED HT RANGE (GNSS) |
| 1 |
ANT,RUBBER DUCK 440-470MHZ HIPER PRO |
| 1 |
CARD, 1,2,3,5 YR WARRANTY |
Base UHF 440-470
| 1 |
POWER SUPPLY 12V 5A W/ SAE CONN |
| 1 |
CABLE, POWER 3 PIN US |
| 1 |
BKT, GPS ANTENNA HEIGHT MEASURE |
| 1 |
CABLE,LOW DROP,USB A/USB uB(1.5m) |
| 1 |
BOX, SHIPPING GRX3 |
| 1 |
ASSY,GRX3 W/R2LITE UHF,NO CELL |
| 1 |
CASE, HARD, SOKKIA GRX3 |
| 1 |
NOTICE, SOKKIA R2LITE RADIO FREQUENCY |
| 1 |
CARD, GRX3 QUICK REFERENCE |
| 1 |
CABLE REC TO SERIAL DB9 |
| 1 |
CABLE,POWER 5PIN ODU TO SAE + FERRITE |
| 1 |
ALLIGATOR CLIPS TO SAE CABLE |
| 1 |
CABLE, NET G3 POWER SAE TO OPEN ENDS |
| 1 |
TRIBRACH WITH OPTICAL PLUMMET BLACK |
| 1 |
3/4x12ft/3.7m PWR TAPE 10ths |
| 1 |
ANT,RUBBER DUCK 440-470MHZ HIPER PRO |
| 1 |
CARD, 1,2,3,5 YR WARRANTY |
| 1 |
OAF, Default, GRX3 |
| 1 |
TRIPOD, SK-15 WOOD FIBERGLASS QC |
| 1 |
CABLE,SAE TO SAE EXTENSION |
| 1 |
TRIBRACH ADAPTER #5 W REMOVABLE CENTER |
| 1 |
Prism Spacer, 100 mm |
Network Rover
| 1 |
POWER SUPPLY 12V 5A W/ SAE CONN |
| 1 |
CABLE, POWER 3 PIN US |
| 1 |
CABLE,LOW DROP,USB A/USB uB(1.5m) |
| 1 |
BOX, SHIPPING GRX3 |
| 1 |
ASSY,GRX3 NO RADIO,NO CELL |
| 1 |
CASE, HARD, SOKKIA GRX3 |
| 1 |
NOTICE, SOKKIA R2LITE RADIO FREQUENCY |
| 1 |
CARD, GRX3 QUICK REFERENCE |
| 1 |
OAF, Default, GRX3 |
| 1 |
CABLE REC TO SERIAL DB9 |
| 1 |
CABLE,POWER 5PIN ODU TO SAE + FERRITE |
| 1 |
POLE, 2M FIXED HT RANGE (GNSS) |
| 1 |
CARD, 1,2,3,5 YR WARRANTY |
Static Receiver Kit (No Radio)
| 1 |
POWER SUPPLY 12V 5A W/ SAE CONN |
| 1 |
CABLE, POWER 3 PIN US |
| 1 |
CABLE,LOW DROP,USB A/USB uB(1.5m) |
| 1 |
BOX, SHIPPING GRX3 |
| 1 |
ASSY,GRX3 NO RADIO,NO CELL |
| 1 |
CASE, HARD, SOKKIA GRX3 |
| 1 |
NOTICE, SOKKIA R2LITE RADIO FREQUENCY |
| 1 |
CARD, GRX3 QUICK REFERENCE |
| 1 |
OAF, Default, GRX3 |
| 1 |
CABLE REC TO SERIAL DB9 |
| 1 |
CABLE,POWER 5PIN ODU TO SAE + FERRITE |
| 1 |
POLE, 2M FIXED HT RANGE (GNSS) |
| 1 |
ANT,RUBBER DUCK 440-470MHZ HIPER PRO |
| 1 |
CARD, 1,2,3,5 YR WARRANTY |
| 1 |
TRIPOD, SK-15 WOOD FIBERGLASS QC |
