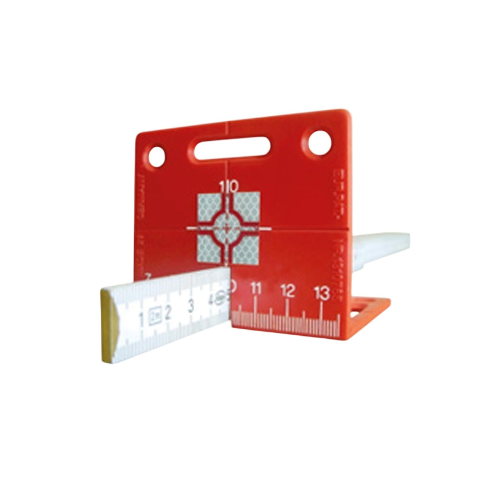

RS95 Stake Out Aid with Reflective Targets and Ruling Lines (10 pack)
Stake out aid RS95 was developed specifically for setting out work on the batter boards and floor slab. Exact measuring of the survey point on the floor slab often causes major problems particularly in the “final phase” with the last 5-10 cm. The work is very time-consuming due to the continual side to side, backwards and forwards with the prism pole and the prism pole always has to be exactly plumb. Setting out aid RS95 allows the measuring scales to reproduce and transfer the surveyor’s directions quickly and precisely. The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.
Features:
• Makes surveying the axes on the batter boards easier
• The last 5-10 cm especially can be measured quickly and precisely
• The surveyor’s dimensional data can be transferred accurately to the floor slab
• There is no need for precise plumbing of the prism pole
• Orientation scale for left and right – the number 10 corresponds to the axis
• Orientation scales for backwards and forwards

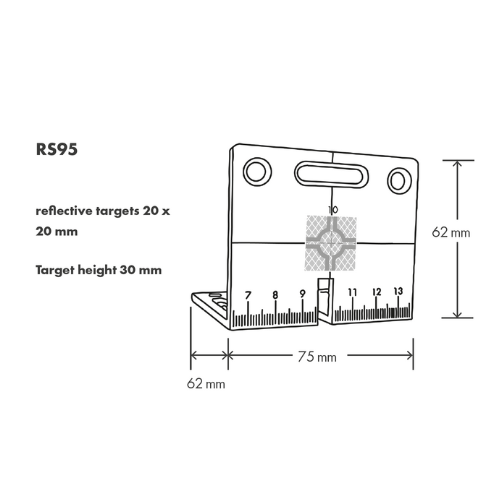

• The following height must be taken into account for the measurements: From the crosshairs of the reflective target to the floor slab 30 mm
