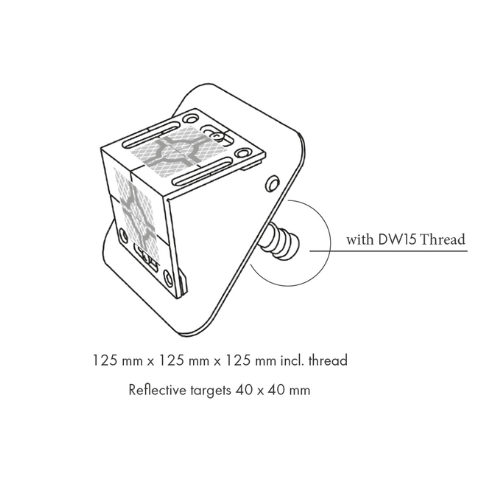

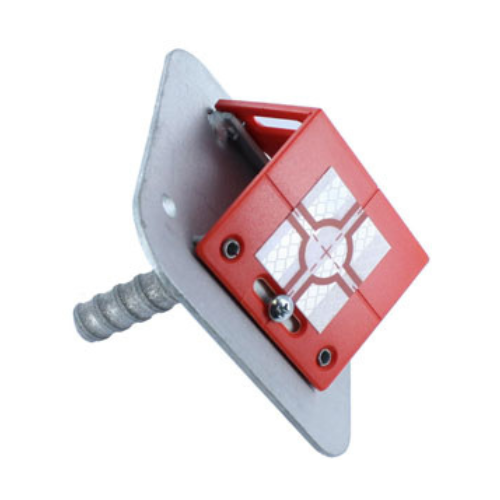

The RSAMG80 Metal Adapter turns Smart Angle Targets into all-angle control monuments.

Uses:

• Bridge construction and bridge monitoring

• Tunnel construction

• Monitoring earth and rock movements

• Enables measurements and monitoring to be carried out from almost any angle, in cramped conditions and at locations which are difficult to access

• The clip system allows the original measurement point to be restored quickly and cheaply in the event of damage

• Many measurements can be carried out within a short time when used with current total stations

• Drilling is not required, as pre-installed anchor sleeves for DW15 threads can be used for mounting

• Anchor sleeves can be used during the construction phase for measurement points – above and below the bridge bearing, in the case of supporting structures and in many other applications

Ranges:

• Target reflectors w/ cross hair 30 x 30 mm: range approx.  80 m (262 ft)

• Target reflectors w/ cross hair 40 x 40 mm: range approx.  100 m (328 ft)

• Target reflectors w/ cross hair 60 x 60 mm: range approx.  120 m (393 ft)

The ranges are average values and will be greatly exceeded by the majority of current total stations, some of them need a minimum distance of 10 meters.

Attention:

– It is recommended that only reflective targets are used for distance measurements using a total station

– Targets with cross-hairs (non-reflective) are especially for use with auto levels, theodolites and construction lasers
