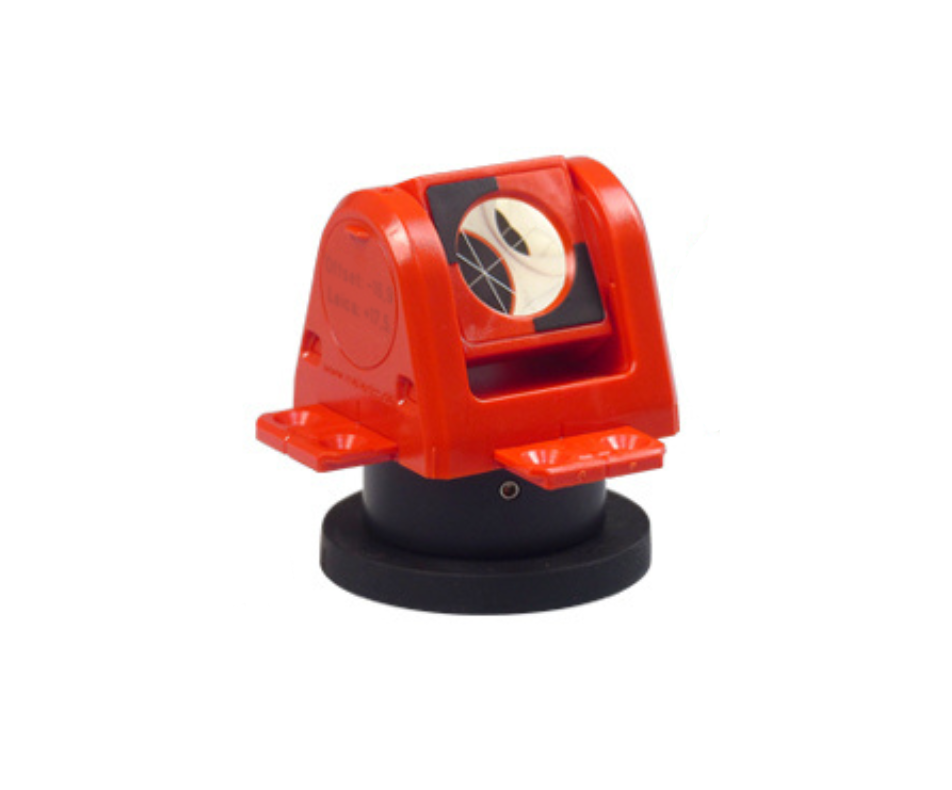

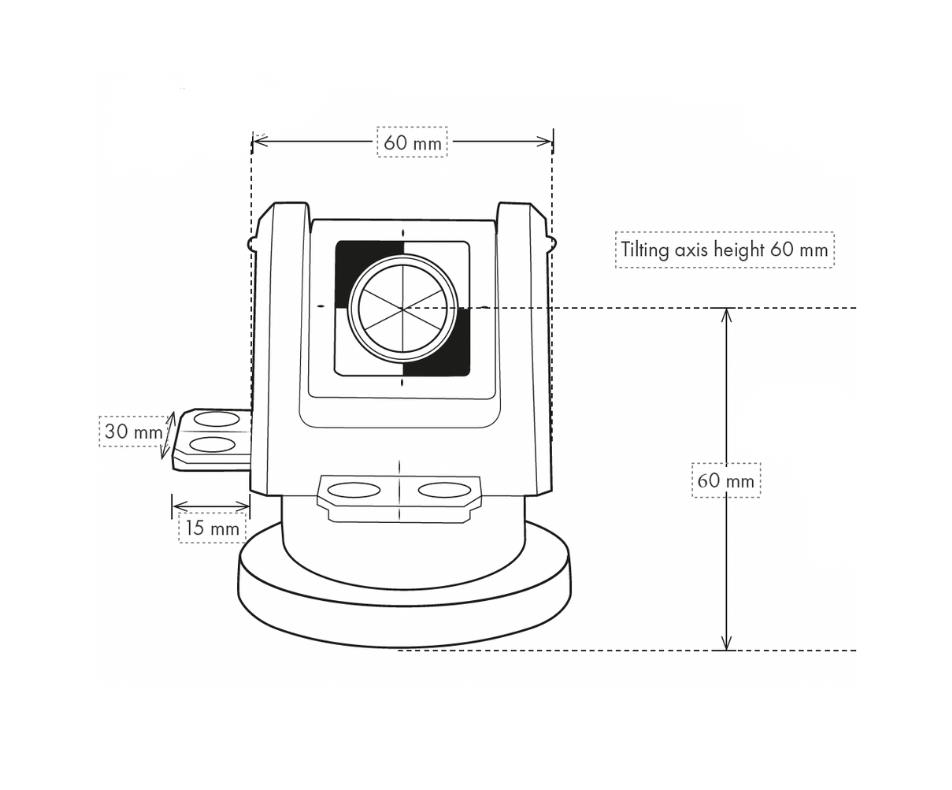

With the RSMF52, reference points can be created in the simplest way, both on steel construction or on steel masts and columns. Tilting axis height is 60mm.
The target or prism is placed at the desired position using the magnetic adapter. This already creates the reference point itself.
When using the version with prisms, they can be precisely aligned to the instrument but can also be rotated and tilted in any direction if needed, without changing the reference point.
Scanner and drone targets are also available for the system and have the same XYZ coordinates when in use.
If the reference point is used over a longer period, it can be protected from dirt with a protective cap.
Important: The strong magnet itself forms the reference point. This eliminates the need for gluing, cleaning, or drying the surface.
