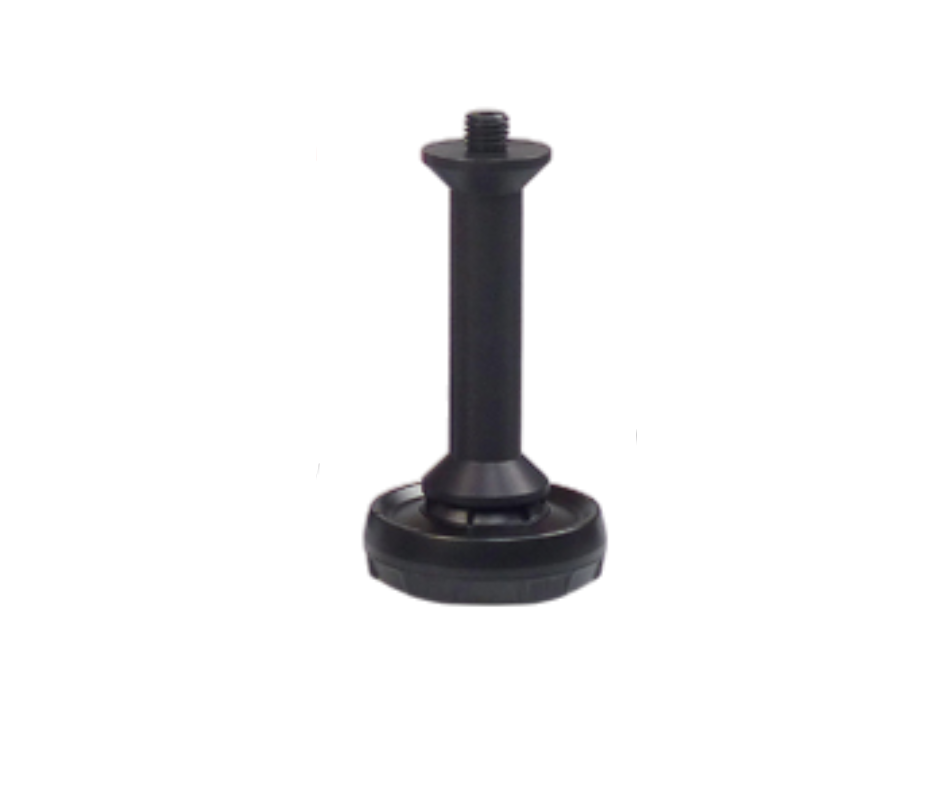

The reference points RS0196M has been specifically developed for use with GPS and GNSS antennas as well as antenna poles. Combined with the OPFA system, they offer even more possibilities to optimize the use of your instruments.
Advantages of using these reference points with GPS and GNSS:
• Establishing Fixed Points: Fixed points with a GNSS antenna if an accuracy of less than 1 cm is sufficient. The reference points can subsequently be used with total stations, laser scanners, drones, and other instruments
• No Need to Drive Nails: Instead, existing reference points are used, or new ones can be quickly and flexibly set with the RSFP-X90 to RSFP-X99 fixed point system. This provides significantly more mounting options compared to traditional nails:
– Gluing – Screwing – Magnetic attachment
• Vertical Objects: Fixed points can also be e![]()
stablished on vertical surfaces (e. g., walls) using GNSS / GPS Receiver with tilt compensation
• Seamless Workflow: Supports various measurement techniques: GNSS – Laser Scanning / Lidar – Photogrammetry – Total Stations – Laser Tools (line and rotation lasers)

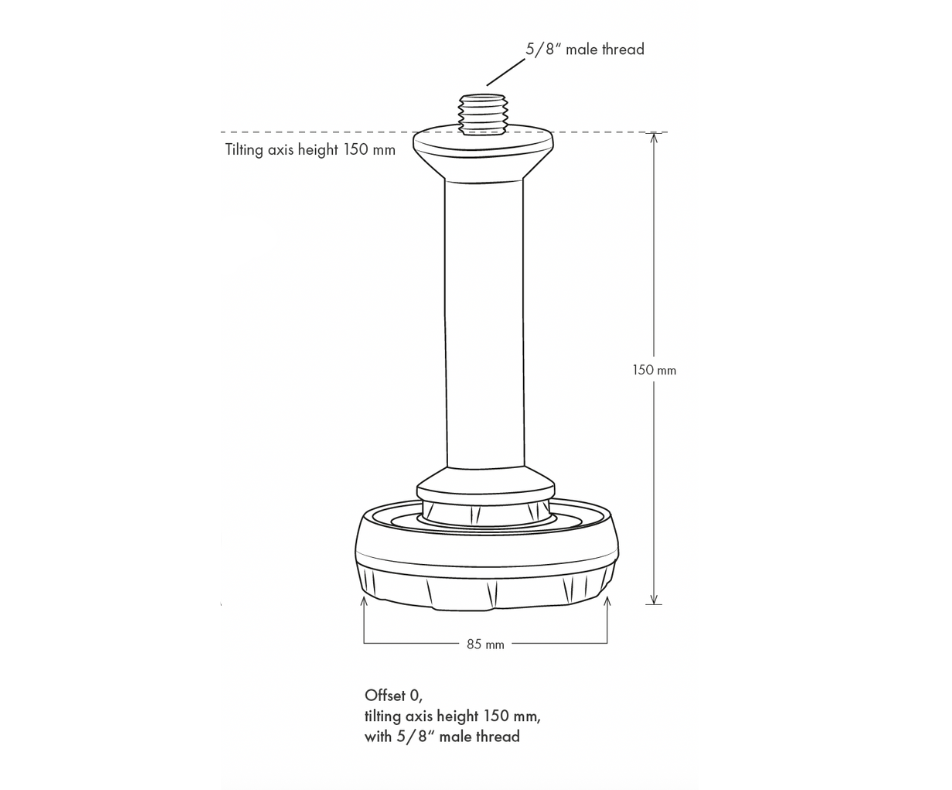

• Offset: 0
• Tilting axis height: 150 mm with 5/8“ male thread
