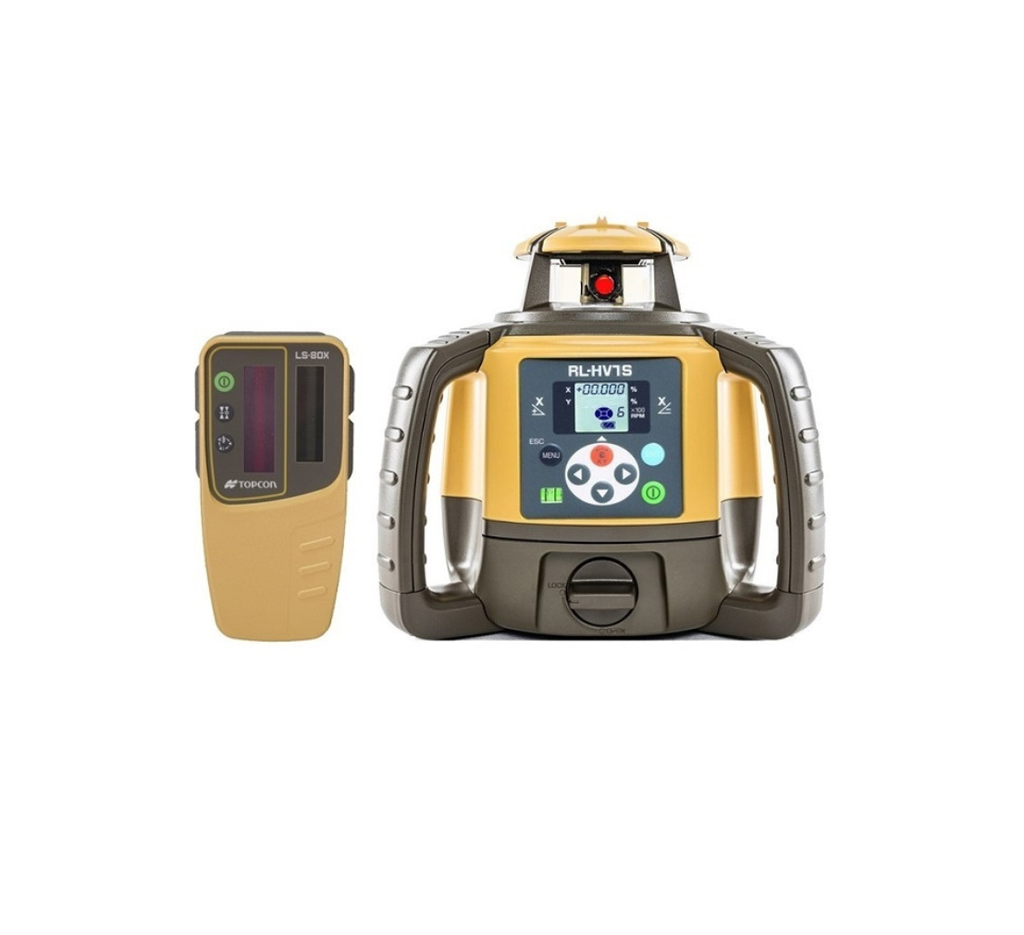

Topcon RL-HV Series Construction Slope Laser
The RL-HV Series can be used for a wide variety of single slope applications. Slopes up to ±5% can be used in the X axis. Additionally, the RL-HV2S can be used for a variety of horizontal, sloping laser applications. Slopes up to ±5% can be used in either the X or Y axis.
With an operating range of over 800 m (diameter), the RL-HV1S and RL-HV2S have the power to cover even the biggest projects.
Contractors who want a laser with a long battery life will love the RL-HV1S and RL-HV2S. With an operating time of 120 hours on alkaline batteries or 65 hours with the rechargeable Ni-MH battery pack, these lasers will still be working long after others have quit.
With the IP66 rating, the RL-HV1S and RL-HV2S are rugged and can withstand dust, a sudden shower and even torrential rainfall.
Features:
• Long-range operation (800 m)
• Up to 120 hours battery life
• Tough IP66 protection rating
• Included remote control
| Specifications |
RL-HV1S |
RL-HV2S |
| Accuracy |
H: ±10 arc seconds |
| Self-Leveling Range |
Horizontal ±5º |
| Grade |
Single, ±5% |
Dual, ±5% |
| Working Area (Diameter) |
800 m |
| Rotation Speed |
300, 600 rpm |
| Dust / Water Rating |
IP66 |
| Operating Time |
Alkaline: 120 hours; Ni-MH: 65 hours |
| Operating Temperature |
-20ºC to 50ºC |
