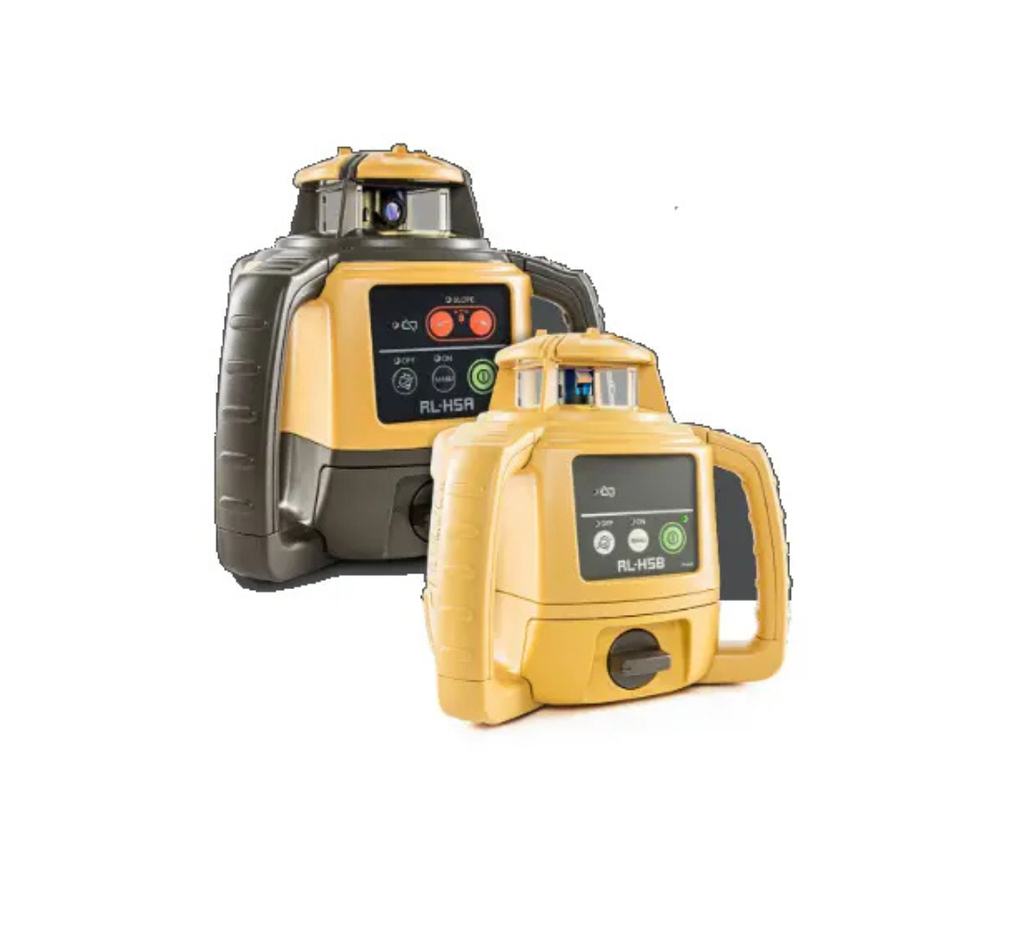

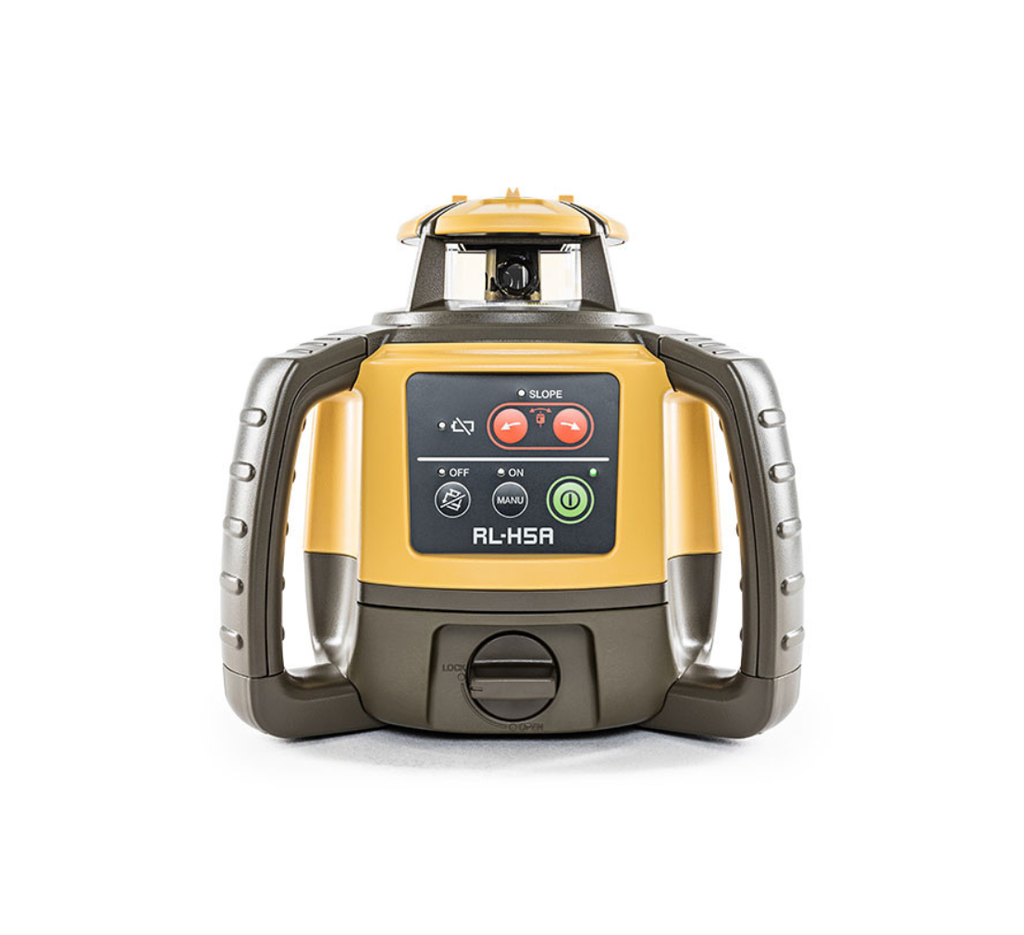

Topcon RL-H5 Series Self-Leveling Construction Laser Series
With great distance and high-accuracy, the RL-H5 Series is simple to use for checking elevations.
With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A / RL-H5B gets disturbed on the job it relevels itself automatically. The self-leveling motors are accurate to ±10 arc seconds (RL-H5A) /±20 arc seconds (RL-H5B).
Need to shoot elevations up to 400 m from your laser? No problem — this instrument has the power and range to cover 800 m (RL-H5A) / 400 m (RL-H5B) diameter job site.
The RL-H5A / RL-H5B gives you the option of up to 60 hours of continuous usage with the rechargeable battery pack or 100 hours with (4) D cell batteries.
With the IP66 rating, the RL-H5A / RL-H5B is job site tough and can withstand dust, a sudden shower and even torrential rainfall.
| Specifications |
RL-H5A |
RL-H5B |
| Accuracy |
H: ±10 arc seconds |
H: ±20 arc seconds |
| Self-Leveling Range |
Horizontal ±5º |
| Working Area (Diameter) |
800 m |
400 m |
| Rotation Speed |
600 rpm |
| Dust / Water Protection |
IP66 |
| Operating Time |
Alkaline: 100 hours; Ni-MH: 60 hours |
| Operating Temperature |
-20ºC to 50ºC |
| Size |
205 x 211 x 172 mm |
