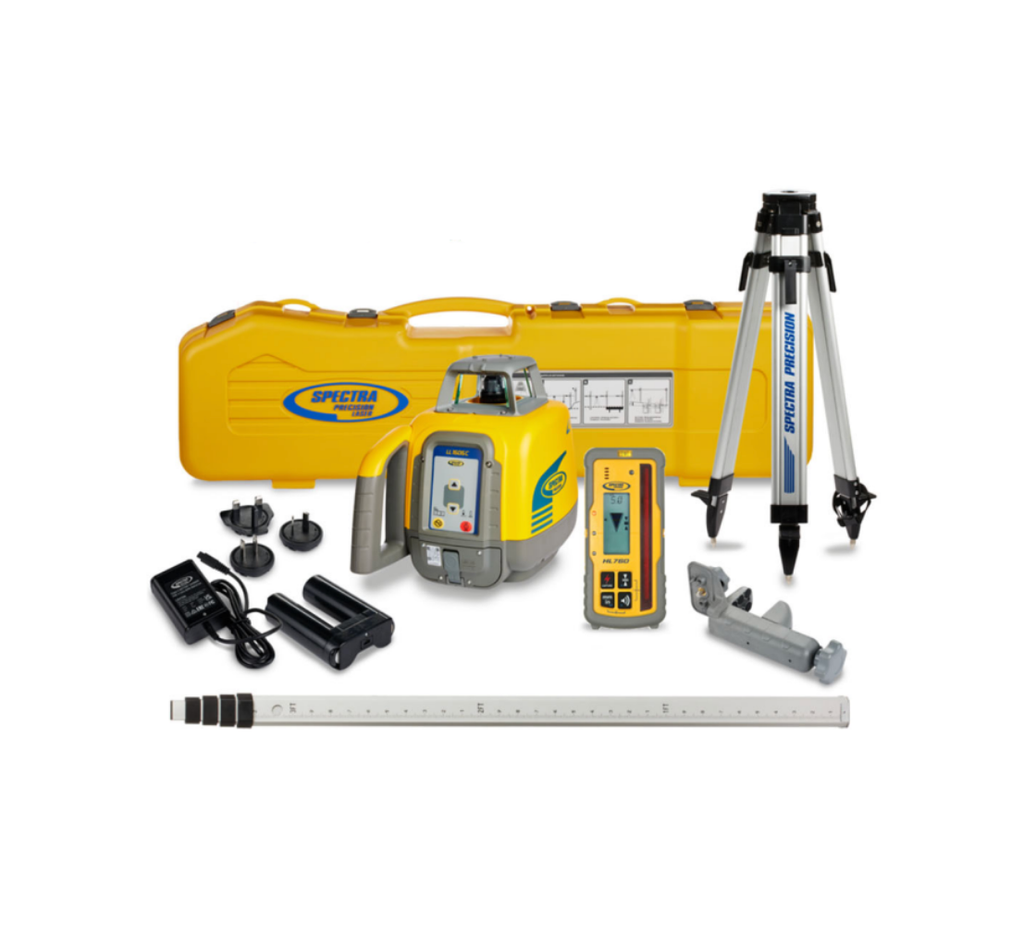

The automatic, self-leveling Spectra Precision LL1505C-11 Laser Level Kit contains the most rugged laser level available to handle a wide variety of general and concrete construction applications. The rugged laser can withstand drops of up to 1 meter (3 feet) onto concrete and tripod tip overs up to 1.5 meters (5 feet). It is also fully weatherproof and dustproof, to reduce downtime and lower repair costs over the life of the product.
This kit includes: LL1505C Laser, HL760 Receiver, C45 clamp, B10 NiMH battery pack, CH10 charger, GR151 rod (Tenths), Q104025 tripod, 128995-00 system case.
LL1505C features:
• Single person manual slope control
• Complete kits available, and fits in one case with tripod and grade rod
• Energy-efficient design offers long battery life
• Highly durable design able to survive a drop up to 1m (3 feet) onto concrete
• Remote control or remote control app allows operation of laser functions from anywhere on the jobsite
• Automatic horizontal self-leveling
• Accuracy 1.5mm / 30m (1/16 inch / 100 ft)
• Working range of 1200m (4,000 ft) diameter with HL760 receiver
• Bluetooth connection allows laser control with a smartphone
• Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
• Simple keypad for easy grade matching
• Selectable rotation speed is ideal for working with machine mounted receivers
• Power versatility – charge the batteries inside or outside the laser. Alkaline batteries can also be used
HL760 Specifications:
• PlaneMatch – Automatically establishes slope between two points over unknown ground
• PlaneLok – Locks the laser beam to a fixed elevation, reducing drift caused by vibration or temperature
• Digital Readout – Displays exact distance to grade, improving productivity and reducing rework
• Remote Display– A second HL760 can be used as a remote display for machine operators and grade crews
| Leveling Accuracy |
± 1,5mm / 30m; 1/16 in @ 100ft; 10 arc seconds |
| Rotation Speed |
300, 600, 900 rpm |
| Self-Leveling Range |
Typ. ± 5° (± 8.7%) |
| Radio Range |
HL760-Up to 100m (330 ft) |
| Operating Temperature |
-20°C to +50°C (-4°F to +122°F) |
| Storage Temperature |
-25°C to +70°C (-13°F to +158°F) |
| Power Source |
10,000 mAh NiMH battery pack or 4 x 1.5V D alkaline batteries |
| Battery Lifetime (NiMH) |
Up to 55 hours |
| Battery Charging Time |
< 10 hours |
| Battery Charging Temperature |
5°C to +40°C (+41°F to +104°F) |
| Charger Input Voltage |
100V-240VAC ± 10%, 50 Hz – 60 Hz |
| Dust and Water Proof (IP) |
IP66 |
| Weight |
3.49 kg (7.7 lbs) (incl. Battery pack) |
| Product Dimensions |
240mm x 280mm x 180mm (9.45 in x 11.02 in x 7.09 in) |
