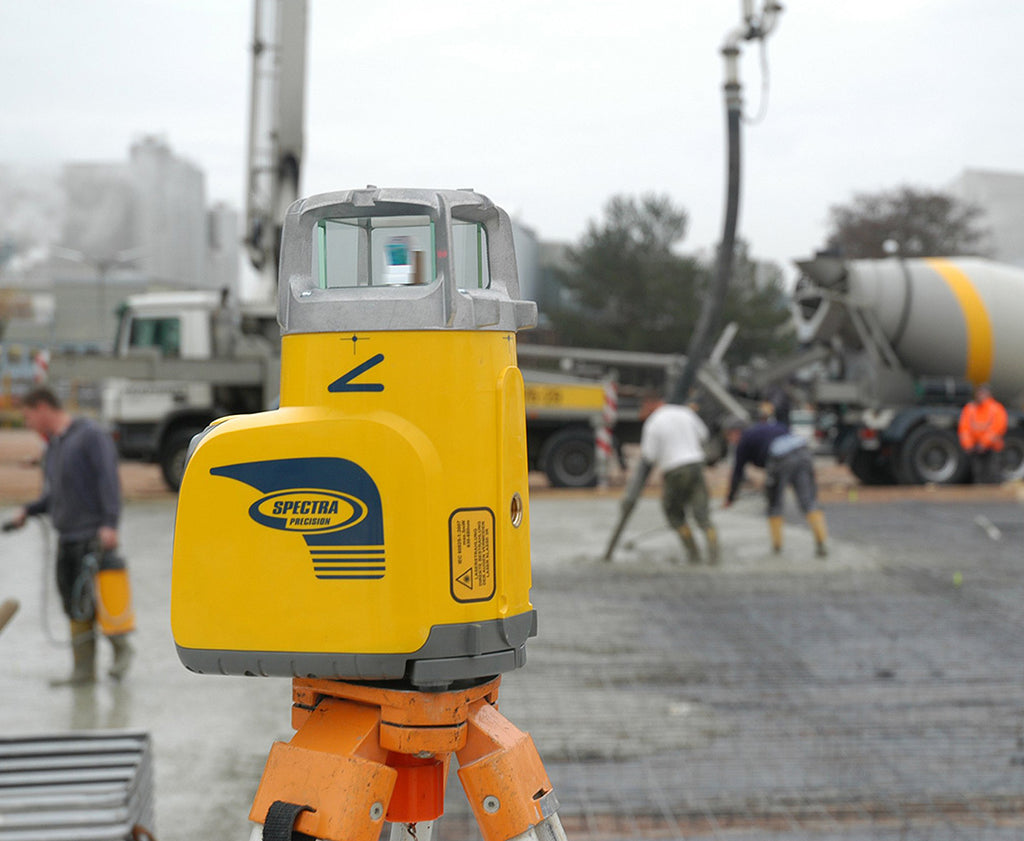

Spectra Precision GL622N Dual-Slope Grade Laser
The GL622N dual-slope grade laser comes with HL760 receiver, C70 rod clamp, RC602N remote, 105516 Vertical Adapter for HL Receiver, 10 Ah NIMH Batteries and Charger. It is an easy-to-use, rugged, automatic self-levelling laser with grade capability from -25% to + 25% and can be used for a wide variety of grade, excavating and alignment applications by general and specialty contractors.
Features & Benefits:
• It provides the ability to control level, alignment, dual grade and set 90 degrees. The GL622IR is not used for vertical alignment or 90-degree layout.
• Long Range – one person elevation and grade control with 800 m (2,600 ft) diameter range increases productivity
• Automatic self-levelling – provides fast, easy set-up for horizontal level, grade or vertical alignment (vertical on GL622N only)
• Automatic Grade Matching – meaning the laser moves to the on-grade position on the receiver automatically by communicating wirelessly with the receiver and the grade is then calculated – this is generally used when a constant fall is desired but the grade may not be known (renewing existing driveways or matching existing surfaces)
• Grade Range – Large, fully compensated grade range from -25% to 25%, keeping the laser levelled no matter what grade you need, reducing errors and improving productivity
• Anti-Vibration Filter that can be set according to the conditions allowing work to continue regardless of wind conditions or excessive vibrations
• Rugged – Can withstand a 1m (3 feet) drop directly onto concrete or 1.5m (5 feet) pushover on tripod
• The PlaneLok function can be activated, keeping the laser beam fixed to a receiver in a set a position eliminating any error that can be caused by fluctuating temperatures, keeping the laser accurate and error free
• It has an Automatic Axis Alignment function, allowing simple set-up simply, maintaining accuracy and eliminating costly errors
• Mask Mode that allows the laser beam to be turned off in up to 3 sides, avoiding false reading from glass reflections or interfering with other lasers on the same jobsite
| Specifications |
| Leveling Accuracy: |
± 0.5 mm/10 m, 1/16“ @ 100 ft, 10 arc seconds |
| Grade Accuracy: |
± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds |
| Grade temperature drift sensitivity: |
± 0,3 mm / 10 m / 1°C; 1/16” @ 310 ft. @ 1°F |
| Operating Diameter: |
Approx. 800 m (2600 feet) with detector |
| Grade Range (Y, X-GL622N/GL622IR): |
± 25% both axes (not simultaneously) |
| Rotation: |
300, 600, 750 rpm |
| Laser Type: |
639 nm (GL622IR: typ.830 nm) |
| Laser Class: |
Class 2 (GL622IR: class 1) |
| Self-leveling Range: |
approx. ± 14° |
| Leveling Indicators: |
LCD indications and LED flashes |
| Power Source: |
NiMH battery pack |
| Battery Life: |
35 hours NiMH (GL622IR: 40 hours NiMH) |
| Operating Temp.: |
-20°C to 50°C (-4°F to 122°F) |
| Storage Temp.: |
-20°C to 70°C (-4°F to 158°F) |
| Tripod Attachments: |
5/8 x 11 horizontally and vertically |
| Dust and Waterproof: |
Yes - IP67 |
| Weight: |
3.1 kg (6.8 lbs) |
| Low Voltage Indication: |
LCD battery indicator |
| Low Voltage Disconnection: |
unit shuts off |
| Warranty: |
5 Years |
