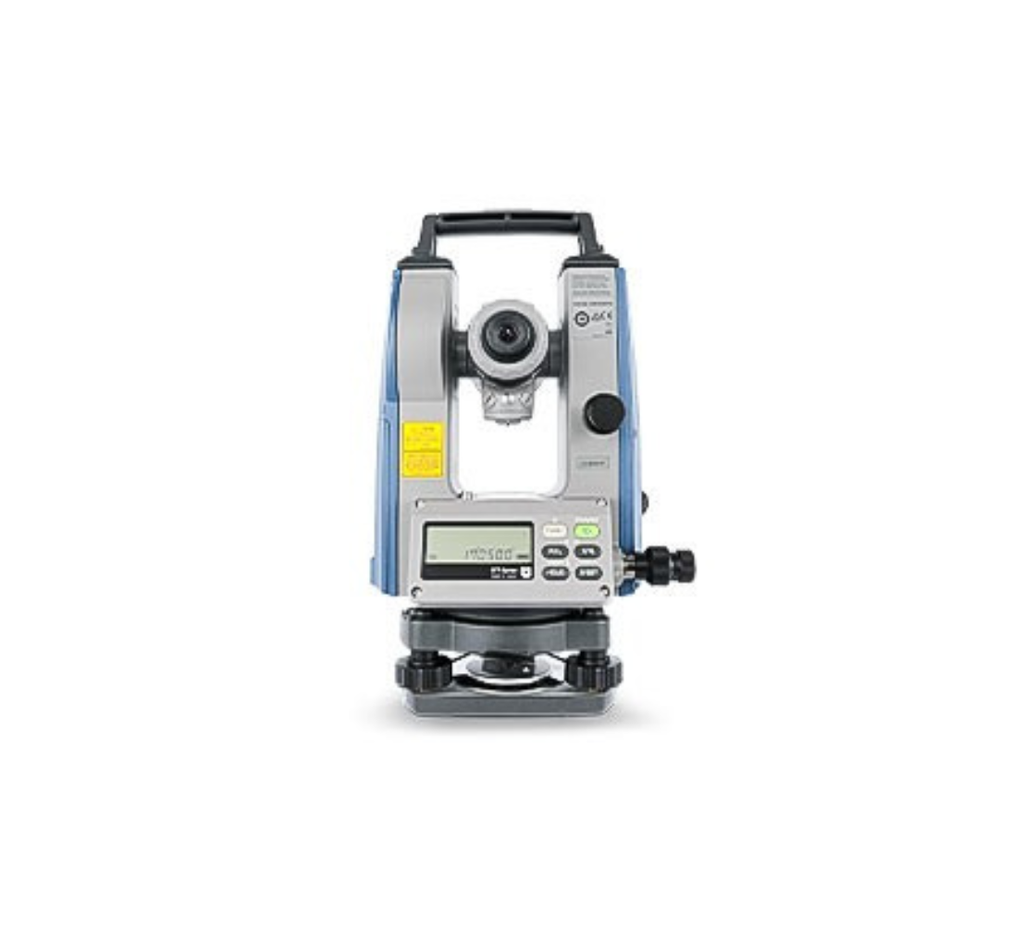

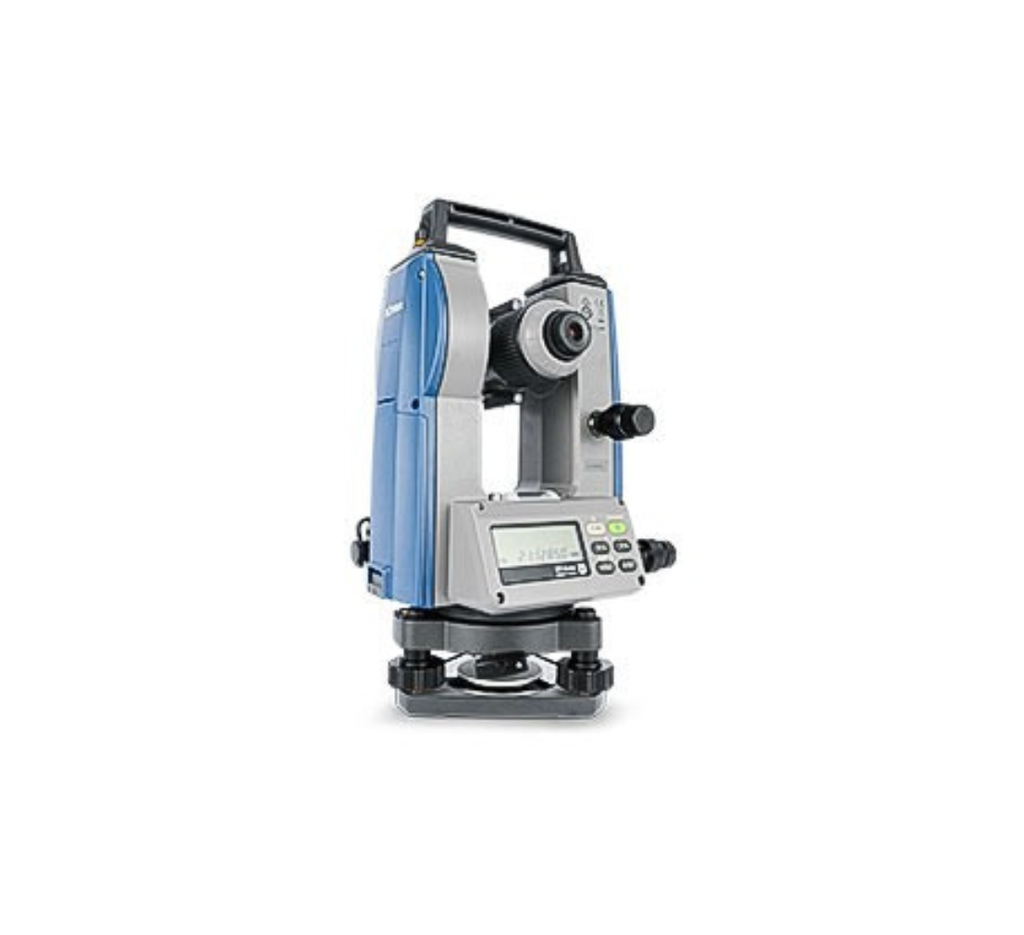

Sokkia DT50L Series Digital Theodolite

The unique DT50L Series features a red Class II laser beam. Use it anywhere on your site and see clearly in direct sunlight up to 165 ft. Now you can quickly and accurately place anchor bolts at regular intervals on a line, set an angle, and use the beam to verify your tape measure is properly aligned for the next stake or “sight in” footers, frames, and tilt-up walls.

Features:

• High-accuracy measurements (5”, 7” and 9” models)

• Ultra-rugged IP66 dust and heavy rain protection

• Compact and light weight

• Long-lasting Li-ion or AA battery life

• Easy-to-use LCD backlit display(s)

• Precise laser pointer guidance

• Embedded tilt sensor for 5” and 7” models

Angle measurement	5″, 7″, 9″
Tilt compensation	Included in 5″ and 7″ models
Operating Time (4 AA alkaline batteries) theodolite only	~ 230 hours
Operating time (Li-Ion) theodolite only	~ 300 hours
Ingress Protection	Dust and water resistance IP66
Operating temperature range	-20 to 50°C (-4 to 122°F)
Storage temperature range	-30 to 60°C (-22 to 140°F) (no condensation)
Size (with handle)	5″ and 7″ Models: 173 (W) X 181 (D) X 318 (H) mm 9″ Models: 173 (W) X 174 (D) X 318 (H) mm
Weight (with batteries and battery holder)	5″ and 7″ Models: 4.1 kg (9.04 lb) 9″ Models: 4.0 kg (8.82 lb)”
