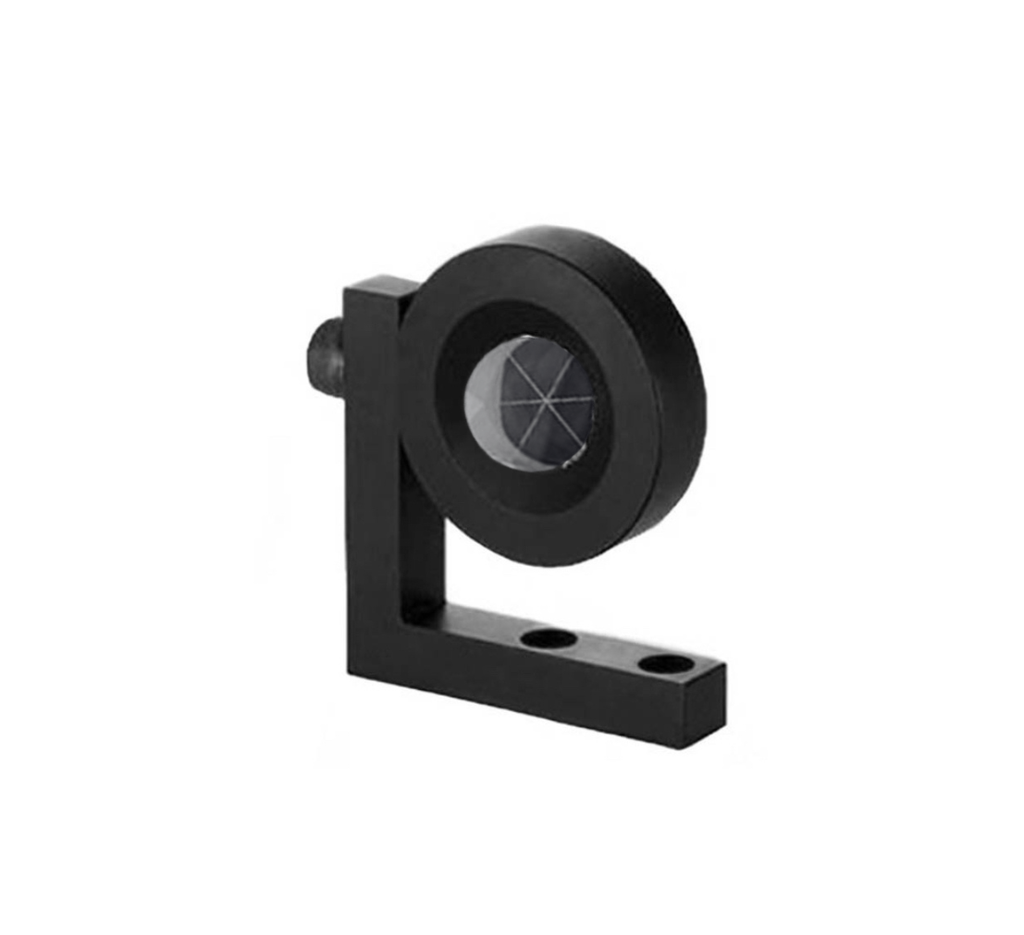

L-Bar Mini Monitoring Prism Copper-Coated "Leica Style" for Robotic AMTS Bridge Construction Surveying

L bar 25.4mm (copper coated) prism is mounted in a hermetically sealed metal holder. The L- bracket has 2 holes to ensure secure and versatile mounting. The prism offset is dependent on the mounting position. The prism is precision ground which affords you to obtain a maximum distance of 2000m (7000ft) under normal conditions. The “L-Bar” and prism housing is constructed of anodized aircraft-grade

Features:

  • Aluminum
  • Offset is dependent on the mounting position
  • Dual mounting holes for secure mounting
  • Range 2000m (7000ft)
  • 25.4mm
  • Also, available with Silver-Coating
  • Available in packs of 1, 5, 20, 40, 60, 80, and 100
Advantages
  • High Performance: Coated optics for better performance.
  • Durable: Prism is water and dust resistant, suitable for any environment.
  • Low Visual Impact: The compact prisms are almost unnoticeable from street level.
  • Easy Installation: The compact bracket can be installed in any orientation and fits nearly any location.
  • Cost-Effective: Economical prism provides a low cost per monitored point.
